Single-block Pulse-on LiNbO3 EO Q-switch

  • Large nonlinear optical coefficient

  • Large receiving angle

  • Small walk-off angle

  • Wide temperature and spectral bandwidth

  • High photoelectric coefficient and low dielectric constant

  • Non-absorbent, stable chemical and mechanical properties

  • Lowest loss Pockels cells with TOP quality LN (LiNbO3) crystals developed in-house

  • High quality surface polishing and coating

  • MgO doped LN and PPLN is available

  • Long and proven lifetime, 2 years guarantee

  • 20 year experience servicing the most demanding laser applications

  • KDP, KD*P, KTP, RTP, BBO, and LN are grown by WISOPTIC in-house

  • Being purchased and trusted by dozens of laser companies worldwide


  Contact Now
Product Details

LN crystals are nonhygroscopic and have low absorption coefficient and insert loss. In addition, LN crystal can operate stably in a wide temperature range, which makes them the main EO crystal applied in military laser systems.

LN electro-optic Q-switches are widely used in Er:YAG, Ho:YAG, Tm:YAG lasers, and are suitable for low-power Q-switched output, especially in laser ranging. LN Pockels cells can be very compact, and the half-wave voltage can be very low. By doping MgO in LiNbO3, the damage threshold of LN Pockels cells can been increased dramatically. We offer the most compact Q-switches for our customers.


Dimensions

(2×2~9×9)×25 mm

Dimension Tolerance

± 0.1 mm

Angle Tolerance

± 0.5°

Flatness

< λ/8 @ 632.8 nm

Surface Quality

< 20/10 [S/D]

Parallelism

< 20”

Perpendicularity

≤ 5'

Chamfer

≤ 0.2mm @ 45°

Transmitted Wavefront Distortion

< λ/4 @ 632.8 nm

Capacitance

20 pF

Electrodes

Gold

λ/4 Voltage

~1.5 kV (@ 1064 nm)

Dynamic Extinction Ratio

20 dB (@ 1064 nm)

Clear Aperture

8.5 mm (> 90% central area)

Coating

AR coating: R < 0.2% @ 1064 nm, R < 0.5% @ 532 nm

Laser Damage Threshold

LN

100 MW/cm2 @ 10ns, 10Hz, 1064nm

MgO : LN

150 MW/cm2 @ 10ns, 10Hz, 1064nm


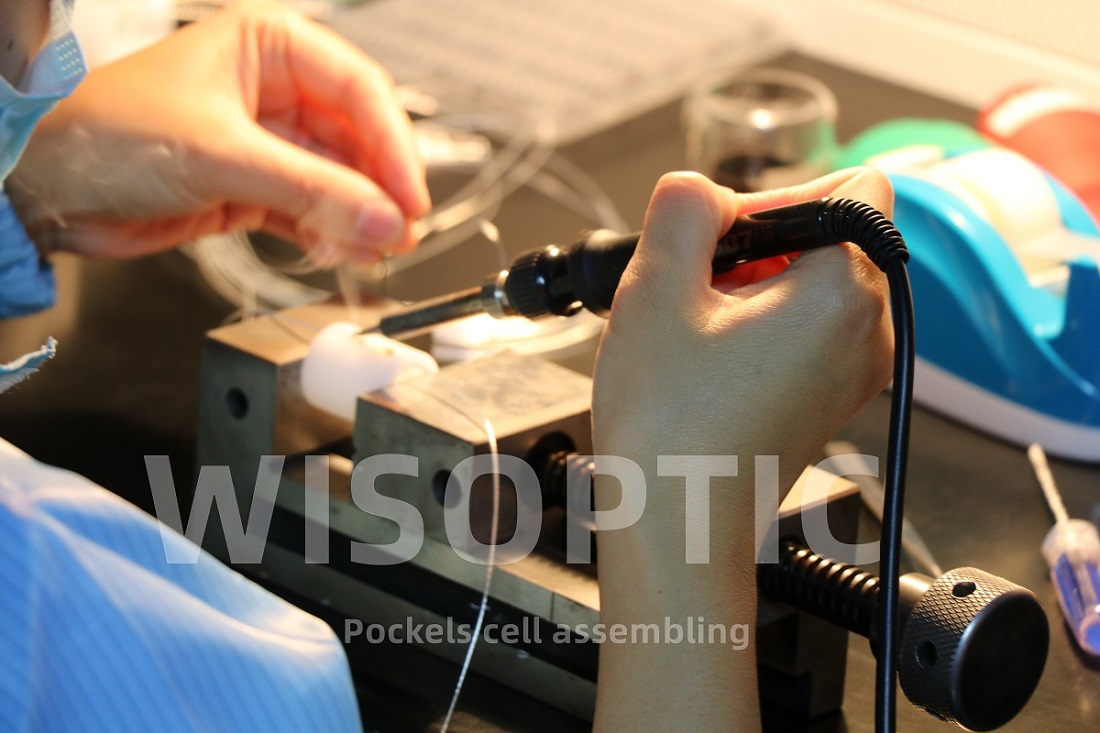

Single-block Pulse-on  LiNbO3 EO Q-switch.jpg

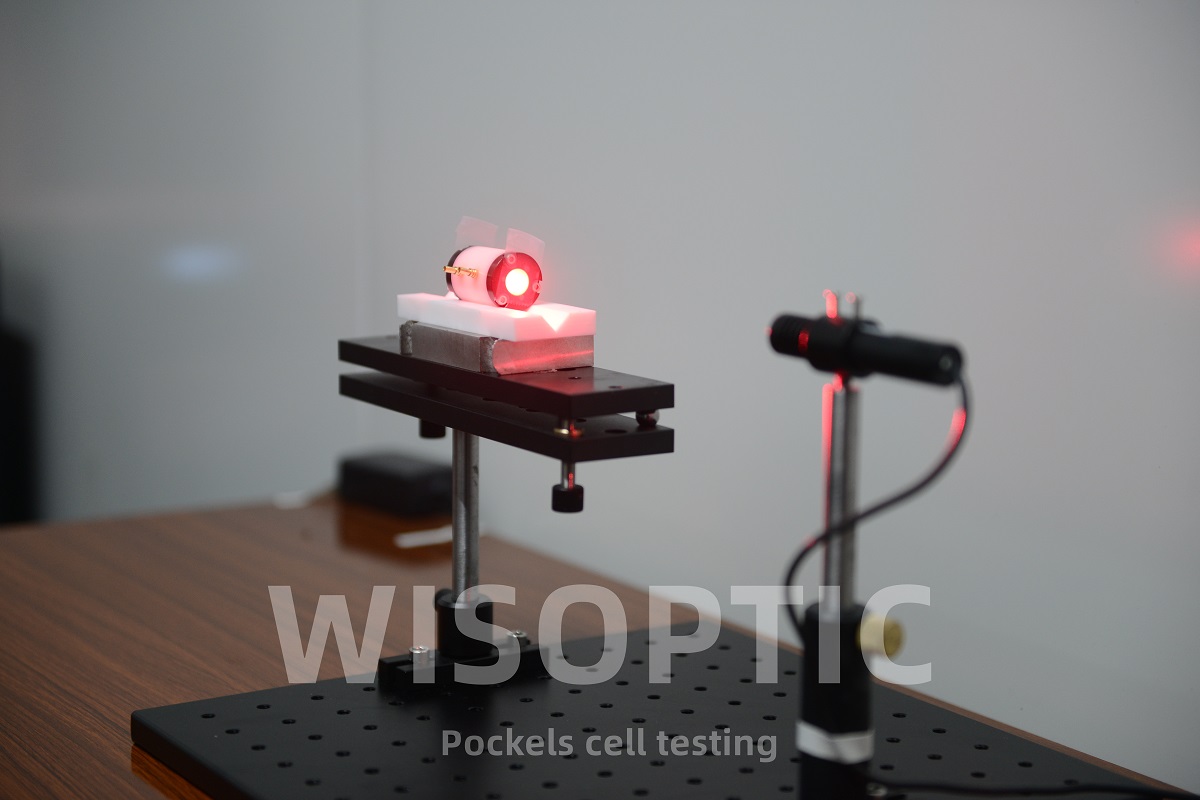

Single-block Pulse-on  LiNbO3 EO Q-switch.jpg


Single-block Pulse-on  LiNbO3 EO Q-switch.jpg


Single-block Pulse-on  LiNbO3 EO Q-switch.jpg
