MgO:LN Crystal

Advantages of MgO:LiNbO3 compared with pure LiNbO3

Higher frequency doubling (SHG) efficiency for pulsed Nd:YAG (65%) and CW Nd:YAG (45%)
Higher performance in applications of OPO, OPA, QPM doublers and integrated waveguide
Much higher photorefractive damage threshold


Features of MgO:LiNbO3

  • High homogeneity

  • WidetTransparency range

  • High value of damage threshold

  • Good electro-optical properties

  • Good photoeleastic properties


  Contact Now
Product Details

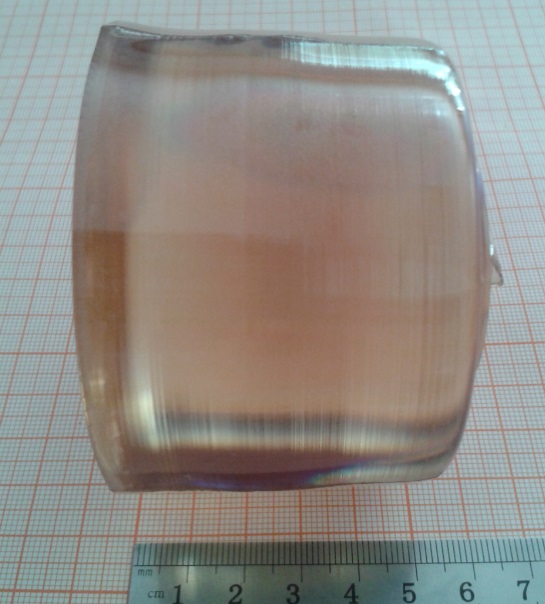

Pure LiNbO3 (LN) is a good candidate for various optical devices, but has a major disadvantage due to its low threshold optical damage. MgO:LN (congruent compositions) is one of the possible solutions to deal with this problem. MgO doping has played an important role in LN and shown an increased threshold laser beam strength by 100 times. An interesting point is that every physical property of MgO:LN (e.g. transition temperature, activation energy, optical band , optical absorption spectra, shift of OH- vibration frequency, density, and electric activation energy) has threshold composition at just above 5 mol% of MgO concentration.



MgO:LN Crystal.jpg


Specifications of MgO:LN components:

 (Typical doping ratio: 5%)

Wavefront distortion: less than λ/6 @ 633 nm
Dimension tolerance: (W +/- 0.1 mm) x (H +/- 0.1 mm) x (L + 0.2/-0.1mm)
Clear aperture: > 90% central area
Flatness: λ/8 @ 633 nm
Surface Quality: Scratch/dig 20/10 per MIL-O-13830A
Parallelism: better than 20 arc seconds
Perpendicularity: 5 arc minutes

Angle tolerance: Δθ < +/-0.25o, Δφ < +/-0.25o


Applications of MgO:LiNbO3

  • Waveguide modulator

  • As a Q-switching in Nd: YAG lasers

  • Being used in frequency doubling at room temperature for 1064nm laser light

  • Electro-optic modulator

  • Range finder

  • Laser radar

  • Mobile telephones


MgO:LN Crystal.jpg


MgO:LN Crystal.jpg


MgO:LN Crystal.jpg


MgO:LN Crystal.jpg
