Er:YAG Crystal for 2940nm Laser

Erbium Doped Yttrium Aluminum Garnet (Er:YAG) lases at 2940 nm which is the same as hydroxyl absorption peak. Therefore the rays produced by Er:YAG can be strongly absorbed by biological tissues which make Er:YAG lasers being widely used in medical area, such as dental (hard tissues), orthopedics, etc. Er:YAG produced by WISOPTIC has high quality of good internal optical uniformity and high slope efficiency.

  Contact Now
Product Details

Main Specifications

Dimensions

Length

50 ~ 120 mm (± 0.5 mm)

Diameter

3 ~ 6 mm (+0.00, -0.05 mm)

Er Concentration

~ 50 atm%

Orientation

[111] (± 1°)

Distinction Ratio

 25 dB

Wavefront Distortion

λ/8 per inch @ 1064 nm

Barrel Finish

Fine ground (400#)

End Surface Parallelism

 10

Perpendicularity

 5

End Surface Flatness

λ/10 @ 633 nm

End Surface Quality

10-5 [s-d] (MIL-PRF-13830B)

Chamfer

0.15 ± 0.05 mm @ 45°

Coating

AR (R<0.25% @ 2940 nm)

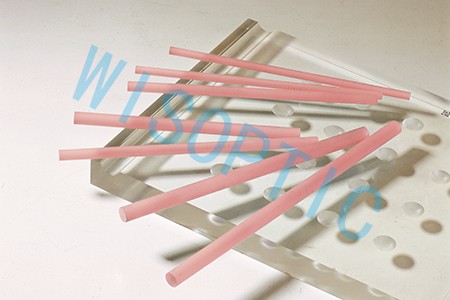

Er-YAG WISOPTIC
