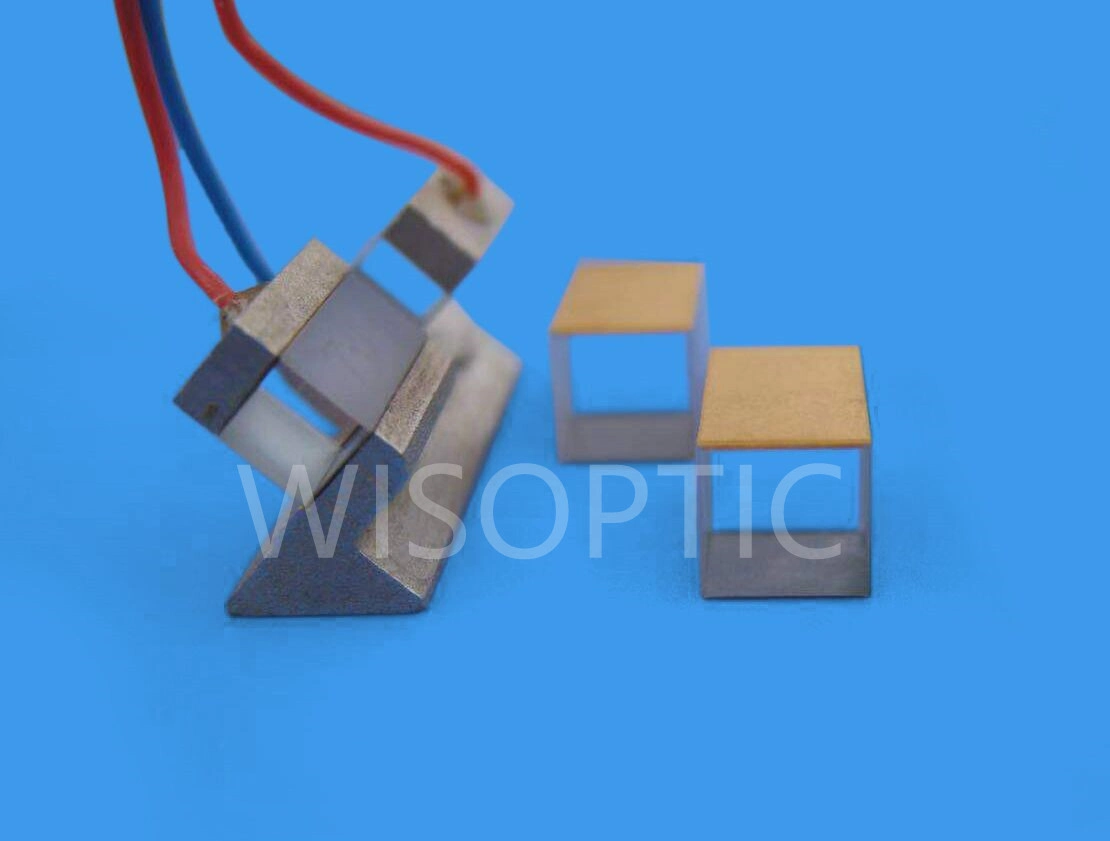

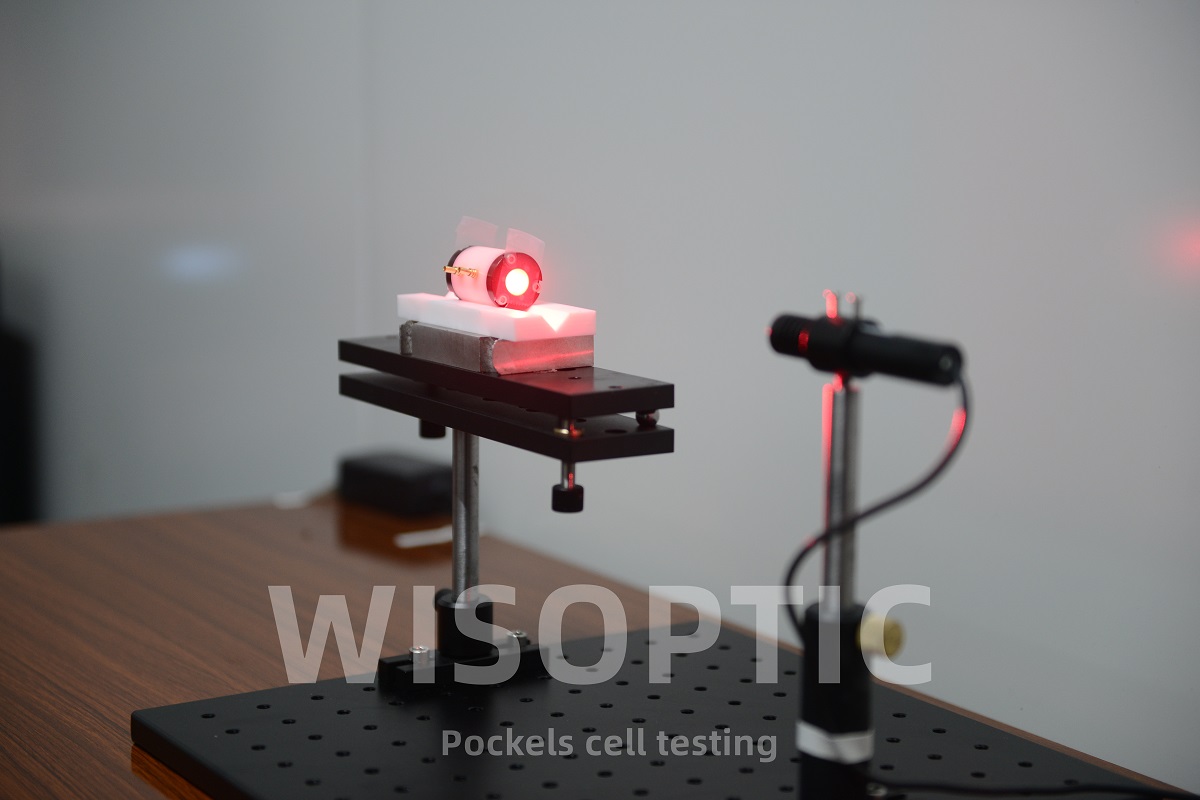

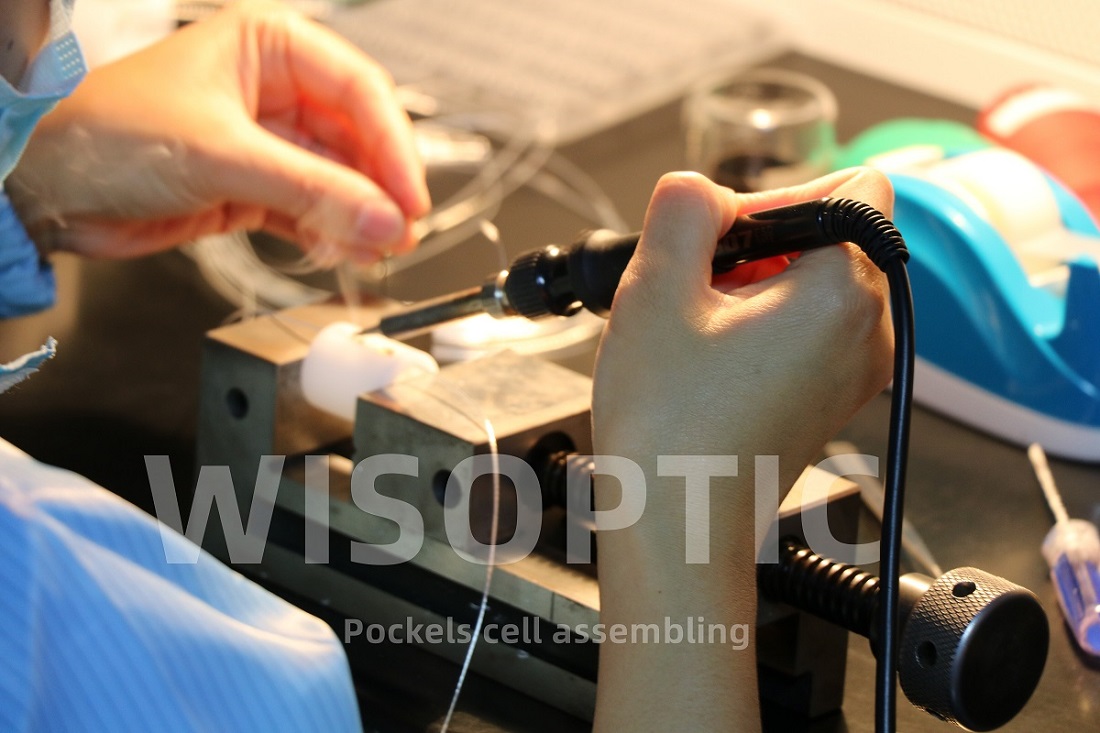

KTP Pockels Cell

• Non-hygroscopic

• Excellent optical uniformity

• Wide optical bandwidth of 500-2800nm

• Low absorption losses at 1064nm wavelength (<250ppm/cm at 1064nm)

High extinction ratio (>25 dB @ 633nm)

• Low half-wave voltage for electro-optics applications

• Minimum piezoelectric ringing compatible for 1MHz

• Rise time under 1ns to precise switching in high repetition rate laser

• High laser induced damage threshold (> 600MW/cm2 at 10Hz,10 ns at 1064nm)

• High resistivity and thermally compensated design to operate on large temperature range (-50℃ to +70℃)


  Contact Now
Product Details

KTP Pockels are based on hydrothermal-grown high resistivity KTP crystals overcomes the common electrochromism damage of flux-grown KTP. Hydrothermal-grown KTP crystals have better optical homogeneity and higher damage threshold comparing to RTP crystals. This KTP crystal has large effective electro-optic coefficients and lower half-wave voltage. The Q-switch is built utilizing thermally compensated double crystal designs. The outstanding feature is a possibility to operate KTP Pockels cells at high duty cycles or even to keep at high voltage for the longer time.

Applications:

  • Q-switching of high repetition rate lasers at 1 kHz – 1 MHz

  • Pulse picking

  • Electro-optical modulator

Features:

  • λ/2 operation with much lower high voltage comparing to DKDP or BBO Pockels cells

  • Typical half-wave operation voltage is <1.5 kV for 3.5 mm diameter clear aperture cell

  • Stable non-drifting contrast operation at high duty cycles

  • Very low piezo-electric resonances

  • Standard available apertures: 3×3, 4×4, 5×5, 6×6, 8×8, and 10×10 mm

  • Supplied as hermetically sealed cells with windows for operation in ordinary (not clean) environment or in open X-shape holder for operation in clean environment


Sizes of one of the pair of KTP

(mm)

X-cut

Y-cut

Electrical Resistivity

(Ohm·cm)

HWV @1064nm

(V)

Extinction Ratio

@ 633nm (dB)

HWV @1064nm

(V)

Extinction Ratio

@ 633nm (dB)

3×3×10

1200

> 25

1000

> 20

> 1011

4×4×10

1600

> 25

1300

> 20

> 1011

5×5×10

2000

> 25

1600

> 20

> 1011

6×6×10

2300

> 25

1900

> 20

> 1011

7×7×10

2700

> 25

2200

> 20

> 1011

8×8×10

3100

> 25

2500

> 20

> 1011

9×9×10

3500

> 25

2800

> 20

> 1011

Damage Threshold: > 600 MW/cm2 for 10 ns pulses @ 1064 nm (AR coating)
