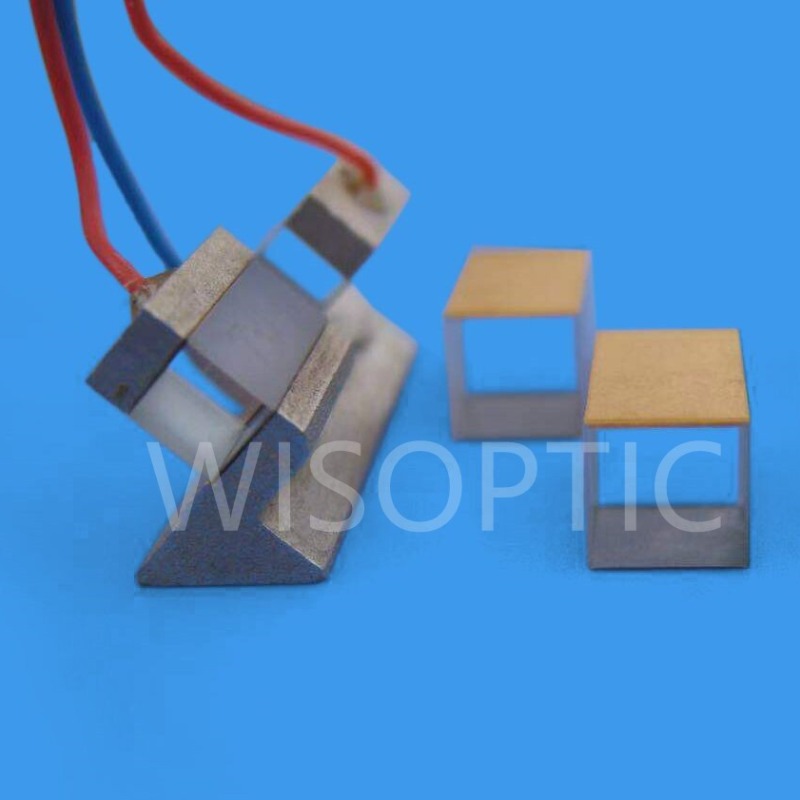

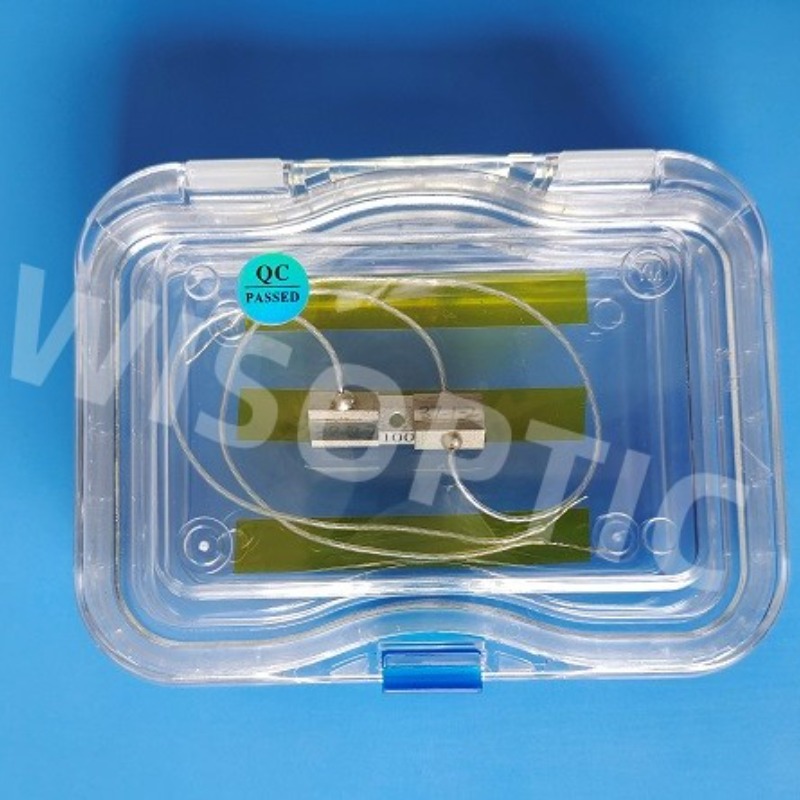

KTP Pockels Cell
• Wide optical bandwidth (0.5-3μm)
• Low insertion loss
• Low half-wave voltage
• Low operating voltage
• High extinction ratio
• Very high laser damage threshold
• No piezoelectric ringing effect
• Precise switching in high repetitive rate laser with super-fast voltage drivers
• Thermally compensated design for operating in large temperature range
• Compact design, very easy to mount and adjust
• Quality KTP crystal with high environmental resistance and long service life
HGTR (high anti-grey track) KTP crystal developed by hydrothermal method overcomes the common phenomenon of electrochromism of the flux-grown KTP, thus has many advantages such as high electrical resistivity, low insertion loss, low half-wave voltage, high laser damage threshold, and wide transmission band.
KTP Pockels cells made by HGTR-KTP crystal are mainly used in pulse lasers with narrow pulse width and high repetition frequency. Giving advantages of high extinction ratio, low half-wave voltage, and no piezoelectric ringing effect under high repetition frequency, KTP Pockels cells are widely used in laser ranging, laser lidar, medical lasers and industrial lasers, etc.
WISOPTIC provides technical consultation, design service, customized test sample, and fast-delivery standard products of KTP Pockels cells.
WISOPTIC Technical Data of KTP Pockels Cell
Sizes of one of the pair of KTP (mm) | X-cut | Y-cut | Electrical Resistivity (Ohm·cm) | ||
HWV @1064nm (V) | Extinction Ratio @ 633nm (dB) | HWV @1064nm (V) | Extinction Ratio @ 633nm (dB) | ||
3×3×10 | 1200 | > 20 | 1000 | > 20 | > 1011 |
4×4×10 | 1600 | > 20 | 1300 | > 20 | > 1011 |
5×5×10 | 2000 | > 20 | 1600 | > 20 | > 1011 |
6×6×10 | 2300 | > 20 | 1900 | > 20 | > 1011 |
7×7×10 | 2700 | > 20 | 2200 | > 20 | > 1011 |
8×8×10 | 3100 | > 20 | 2500 | > 20 | > 1011 |
9×9×10 | 3500 | > 20 | 2800 | > 20 | > 1011 |
Damage Threshold: > 600 MW/cm2 for 10 ns pulses @ 1064 nm (AR coating) | |||||

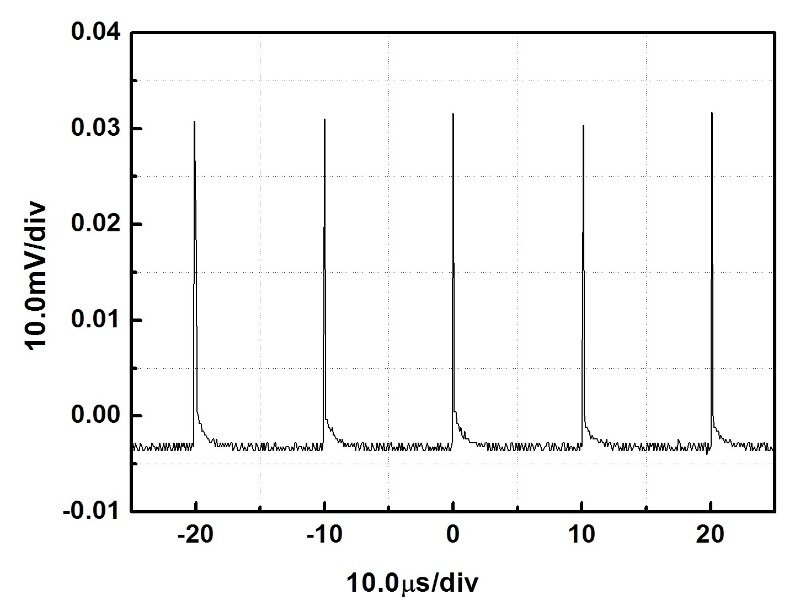

KTP Pockels cell working at 100kHz
