KTP E-O Q-Switch

Non-hygroscopic

Excellent optical uniformity

Wide optical bandwidth of 500-2800nm

Low absorption losses at 1064nm wavelength (<250ppm/cm at 1064nm)

High extinction ratio (>25 dB @ 633nm)

Low half-wave voltage for electro-optics applications

Minimum piezoelectric ringing compatible for 1MHz

Rise time under 1ns to precise switching in high repetition rate laser

High laser induced damage threshold (> 600MW/cm2 at 10Hz,10 ns at 1064nm)

High resistivity and thermally compensated design to operate on large temperature range (-50to +70℃)


Contact Now
Product Details

HGTR (High Grey Track Resistance) KTP crystal developed by hydrothermal method overcomes the common phenomenon of electrochromism of the flux-grown KTP, thus has many advantages such as high electrical resistivity, low insertion loss, low half-wave voltage, high laser damage threshold, and wide transmission band. HGTR-KTP has many electro-optic applications such as  Q-switching for high repetition rate lasers.

HGTR-KTP Crystals for EO Applications

  • Low insertion loss, low quarter-wave voltage

  • High repetition rate

  • Wide optical bandwidth

  • High damaging threshold

  • No piezo-electric ringing

  • Application: Q-switches, pulse picking and EO modulator


Sizes of one of the pair of KTP

(mm)

X-cut

Y-cut

Electrical Resistivity

(Ohm·cm)

HWV @1064nm

(V)

Extinction Ratio

@ 633nm (dB)

HWV @1064nm

(V)

Extinction Ratio

@ 633nm (dB)

3×3×10

1200

> 25

1000

> 20

> 1011

4×4×10

1600

> 25

1300

> 20

> 1011

5×5×10

2000

> 25

1600

> 20

> 1011

6×6×10

2300

> 25

1900

> 20

> 1011

7×7×10

2700

> 25

2200

> 20

> 1011

8×8×10

3100

> 25

2500

> 20

> 1011

9×9×10

3500

> 25

2800

> 20

> 1011

Damage Threshold: > 600 MW/cm2 for 10 ns pulses @ 1064 nm (AR coating)

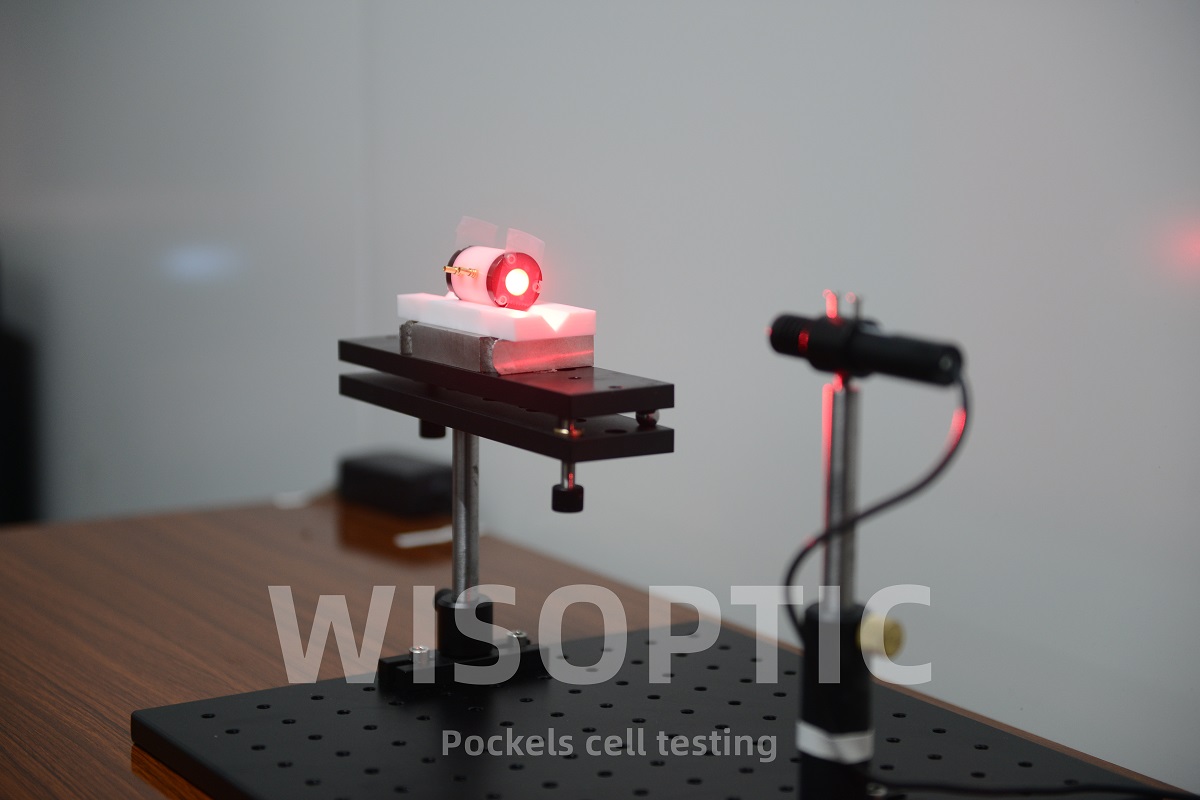

KTP E-O Q-Switch.jpg
