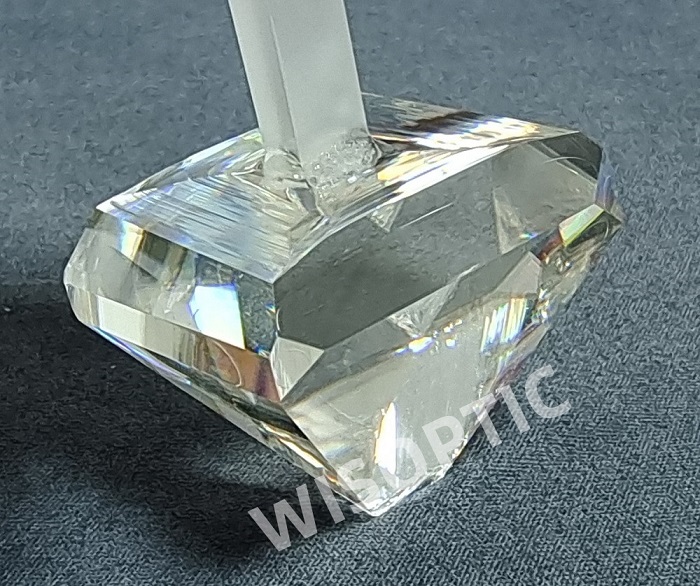

RTP, Rubidium Titanyl Phosphate, RbTiOPO4

High homogeneity
Excellent internal quality
High electrical
resistivity (1011 Ω·m)

Wide temperature range (from ‐50◦C to +70◦C)

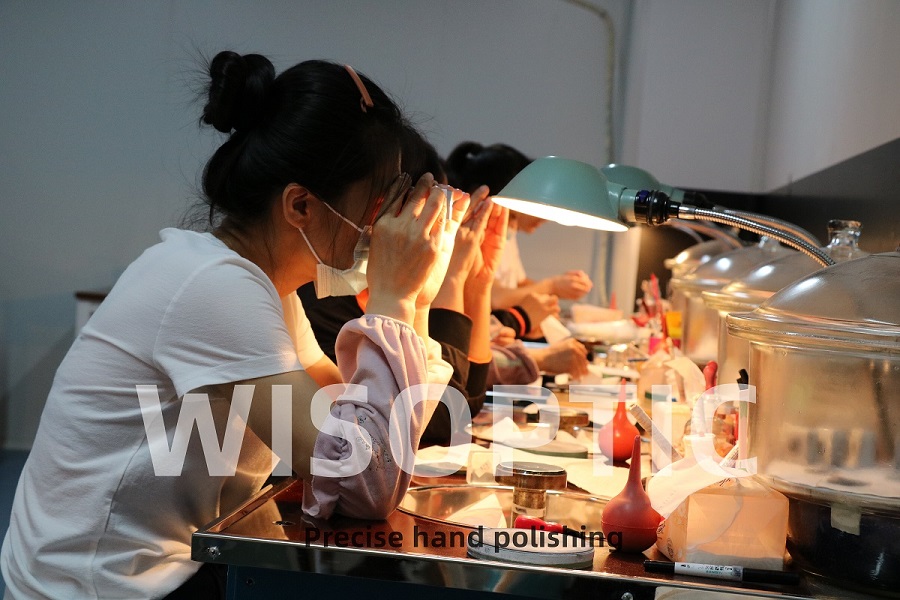

Top quality of surface polishing
Precise pair-matching
Competitive price
Mass production, quick delivery


  Contact Now
Product Details

RTP crystal is widely used for Electro-Optic applications whenever low switching voltages are required. e.g. in laser Q-switching system with high frequency repetition, high power and narrow pulse width. RTP E-O devices are not only used in laser micromachining and laser ranging, but also in major scientific exploration projects due to their excellent comprehensive performance.

As RTP is transparent from 400nm to 3.5µm, it can be used in multiple types of laser such as Er:YAG laser at 2.94µm with fairly good efficiency. Bulk absorption measurements at 1.064µm range from 50 to 150ppm using Photothermal Common Path Interferometer. RTP has high surface damage threshold of 15J/cm² (1064nm, 10ns, 10Hz).


RTP, Rubidium Titanyl Phosphate, RbTiOPO4.jpg



Dimension Tolerance

± 0.1 mm

Angle Tolerance

< ± 0.25°

Flatness

< λ/8 @ 632.8 nm

Surface Quality

< 10/5 [S/D]

Parallelism

< 20”

Perpendicularity

≤ 5'

Chamfer

≤ 0.2 mm @ 45°

Transmitted Wavefront Distortion

< λ/8 @ 632.8 nm

Clear Aperture

> 90% central area

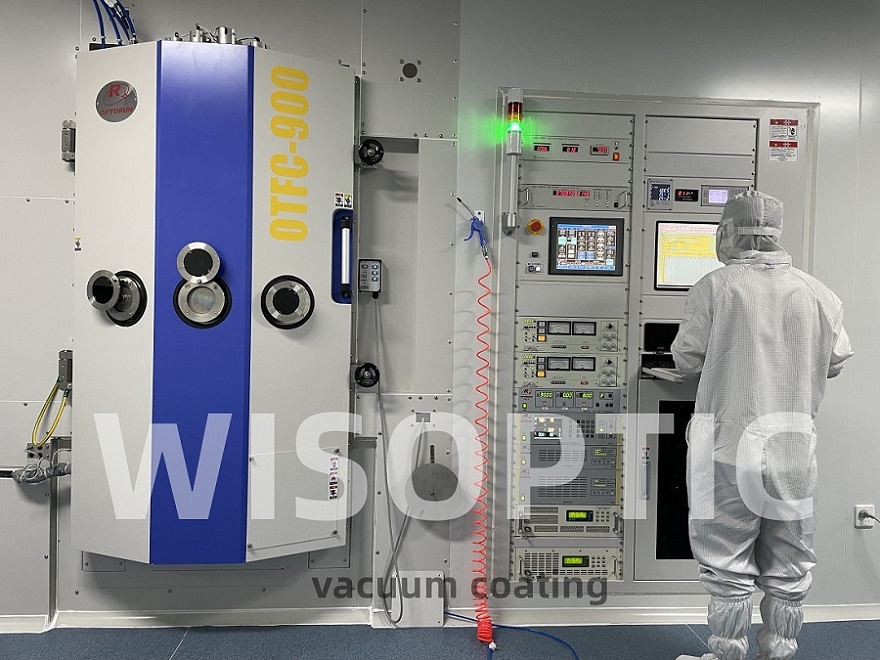

Coating

AR coating: R<0.1% @ 1064nm

Laser Damage Threshold

600 MW/cm2 for 1064nm, 10ns, 10Hz (AR-coated)


RTP, Rubidium Titanyl Phosphate, RbTiOPO4.jpg


RTP, Rubidium Titanyl Phosphate, RbTiOPO4.jpg


RTP, Rubidium Titanyl Phosphate, RbTiOPO4.jpg


RTP, Rubidium Titanyl Phosphate, RbTiOPO4.jpg
