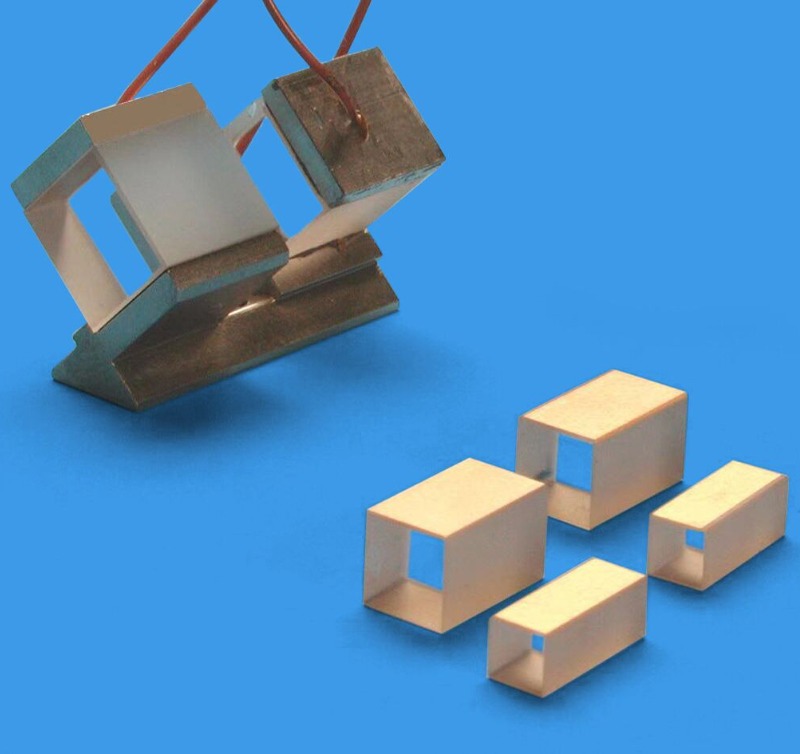

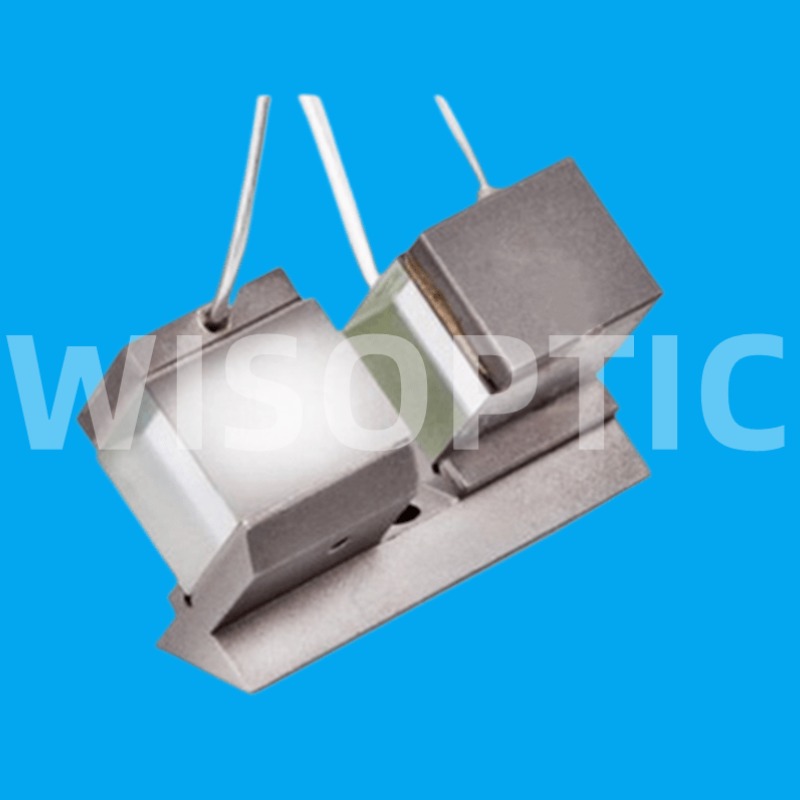

RTP Pockels Cell
• Wide optical bandwidth (0.35-4.5μm)
• Low insertion loss
• Low half-wave voltage
• Low operating voltage
• High extinction ratio
• Very high laser damage threshold
• No piezoelectric ringing effect
• Precise switching in high repetitive rate laser with super-fast voltage drivers
• Thermally compensated design for operating in large temperature range
• Compact design, very easy to mount and adjust
• Quality RTP crystal with high environmental resistance and long service life
RTP (Rubidium Titanyl Phosphate - RbTiOPO4) is a very desirable crystal material for E-O modulators and Q-switches. It has advantages of higher damage threshold (about 1.8 times that of KTP), high resistivity, high repetition rate, no hygroscopic or piezoelectric effect. As biaxial crystals, RTP’s natural birefringence needs to be compensated by use of two crystal rods specially oriented so that beam passes along the X-direction or Y-direction. Matched pairs (equal lengths polished together) are required for effective compensation.
RTP Pockels cells are widely used in laser ranging, laser lidar, medical lasers and industrial lasers, etc.
WISOPTIC provides technical consultation, optimized design, customized test sample, and fast-delivery standard products of RTP Pockels cells.
Technical Data of WISOPTIC RTP Pockels Cell
Crystal Size | 4x4x10 mm | 6x6x10 mm | 8x8x10 mm |
Quantity of Crystals | 2 | 2 | 2 |
Static Half-wave Voltage @ 1064 nm | X-cut: 1700 V Y-cut: 1400 V | X-cut: 2500 V Y-cut: 2100 V | X-cut: 3300 V Y-cut: 2750 V |
Extinction Ratio | X-cut: > 25 dB Y-cut: > 23 dB | X-cut: > 23 dB Y-cut: > 21 dB | X-cut: > 21 dB Y-cut: > 20 dB |
Capacitance | 5~6 pF | ||
Optical Transmission | > 99% | ||
Damage Threshold | > 600 MW/cm2 for 10 ns pulses @ 1064 nm (AR coating) | ||
