alpha-BBO, α-BBO, a-BBO Plates and Blocks

High UV transmittance
Large birefringence
High damage threshold
Stable physical and mechanical properties


  Contact Now
Product Details

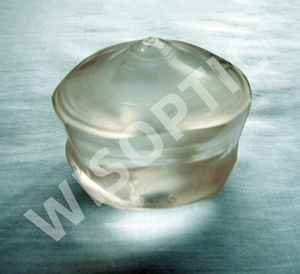

High temperature phase BBO (alpha-BBO, a-BBO) is a negative uniaxial crystal with a large birefringence over the broad transparent range from 189 nm to 3500 nm. The physical, chemical, thermal, and optical properties of alpha-BBO crystal are similar to those of the low temperature phase beta-BBO crystal. However, there is no second order nonlinear effect in alpha-BBO crystal due to the centrosymmetry in its crystal structure and thus it has no use for second order nonlinear optical processes. Instead, alpha-BBO is widely used for fabrication of polarizers, polarizing beam displacers, phase retarders, birefringent plates, and time delay compensators especially those for UV and high power lasers.


Specifications:


Diameter
40~50mm
Length
25~35mm
Surface Quality
20/10 Scratch/Dig
Beam deviation
< 3 arc min
Optical axis orientation
+/-0.5º
Flatness
Better than λ/8 @633nm
Transmission wave front distortion
<λ/4 @633nm

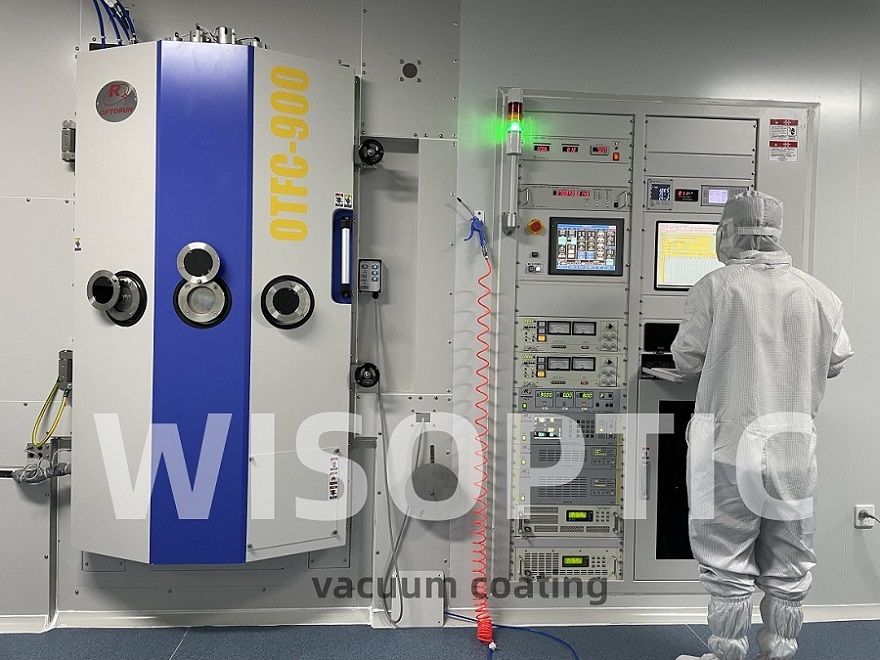

Coating
upon customer's request


alpha-BBO, α-BBO, a-BBO Plates and Blocks.png


alpha-BBO, α-BBO, a-BBO Plates and Blocks.jpg


alpha-BBO, α-BBO, a-BBO Plates and Blocks.jpg


alpha-BBO, α-BBO, a-BBO Plates and Blocks.jpg


alpha-BBO, α-BBO, a-BBO Plates and Blocks.jpg
