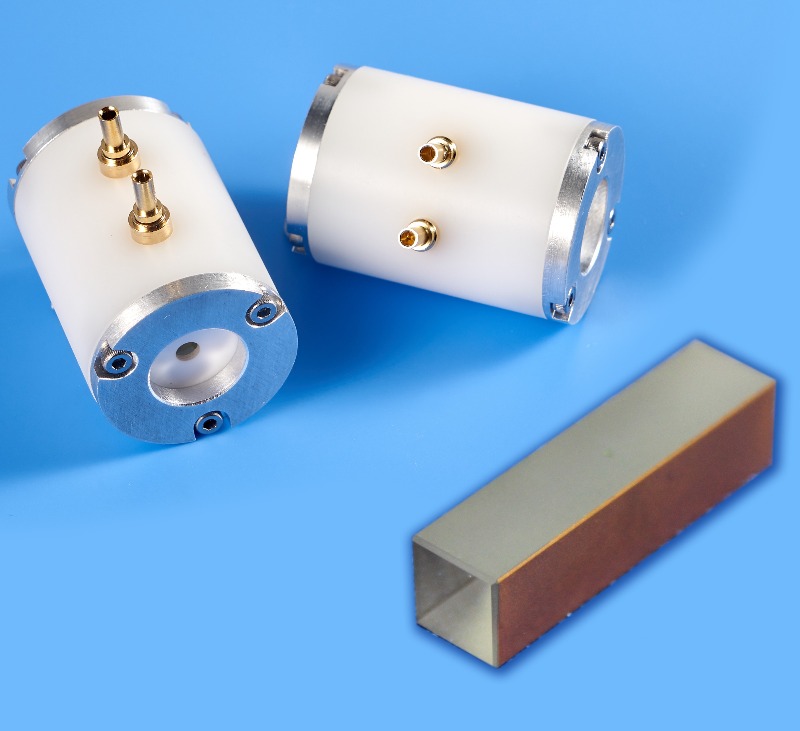

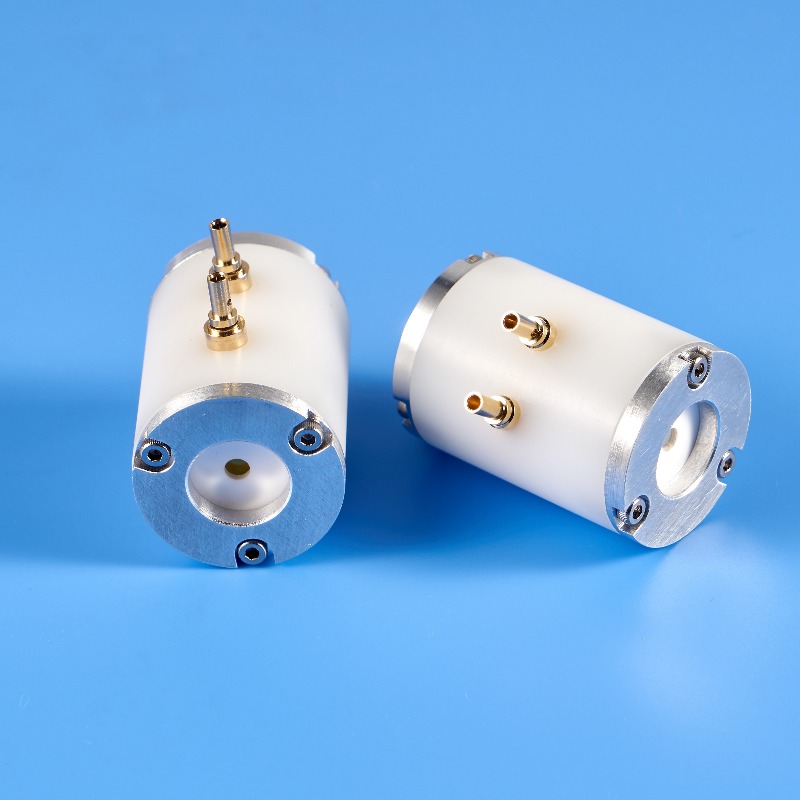

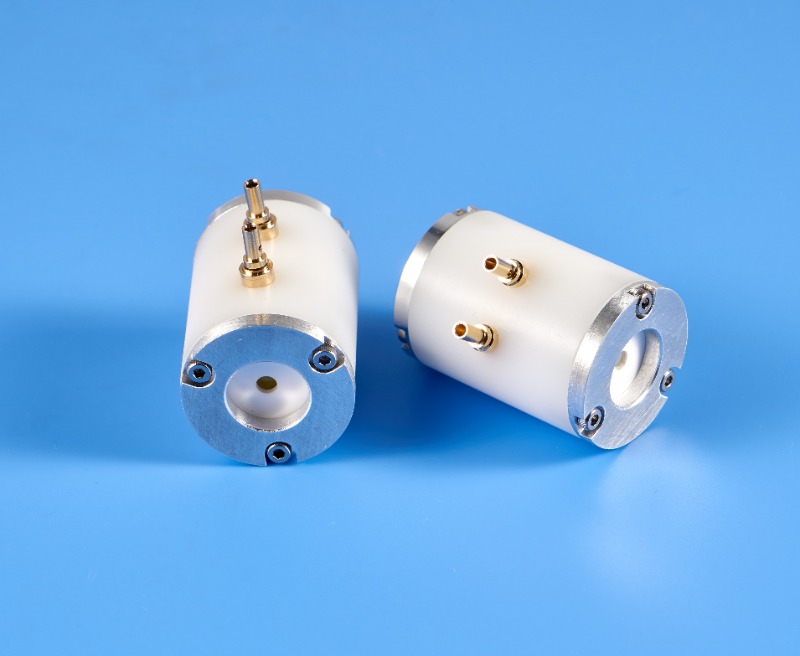

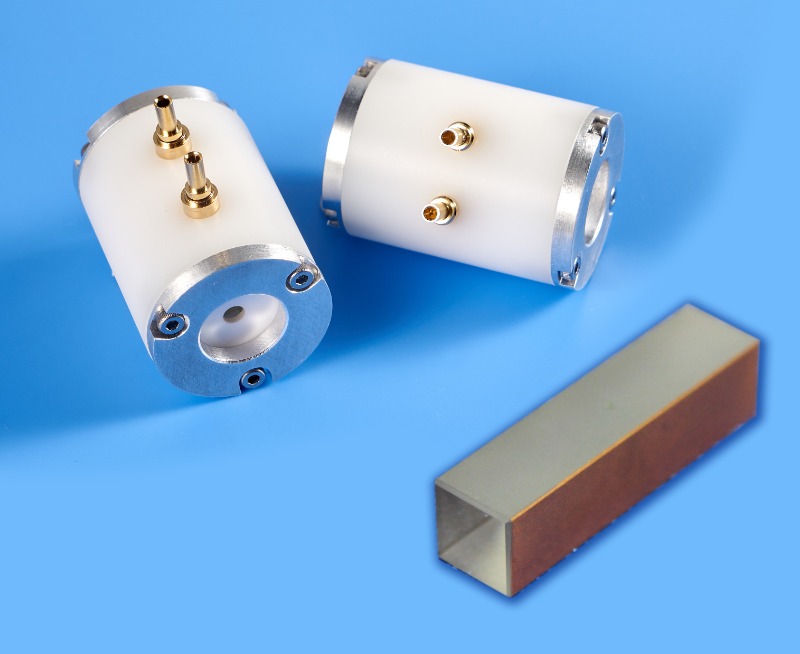

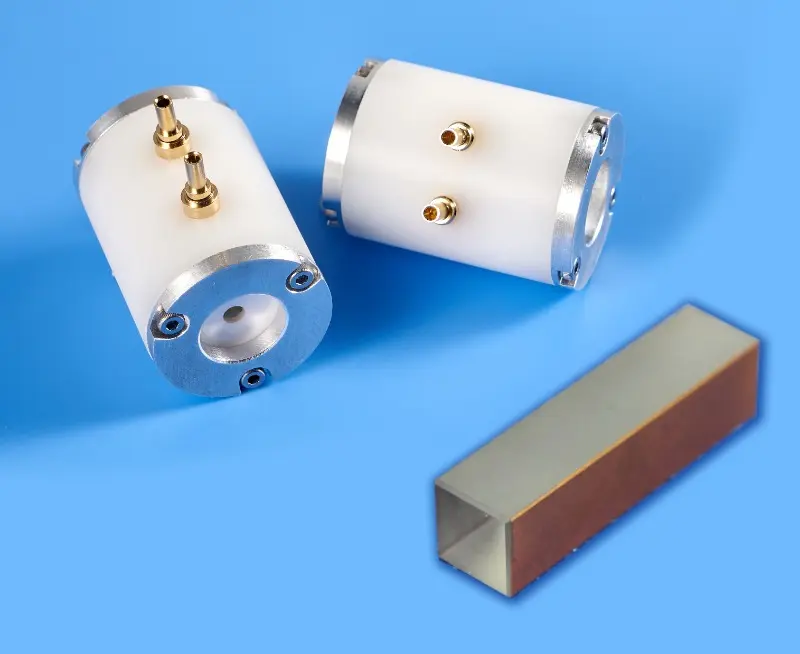

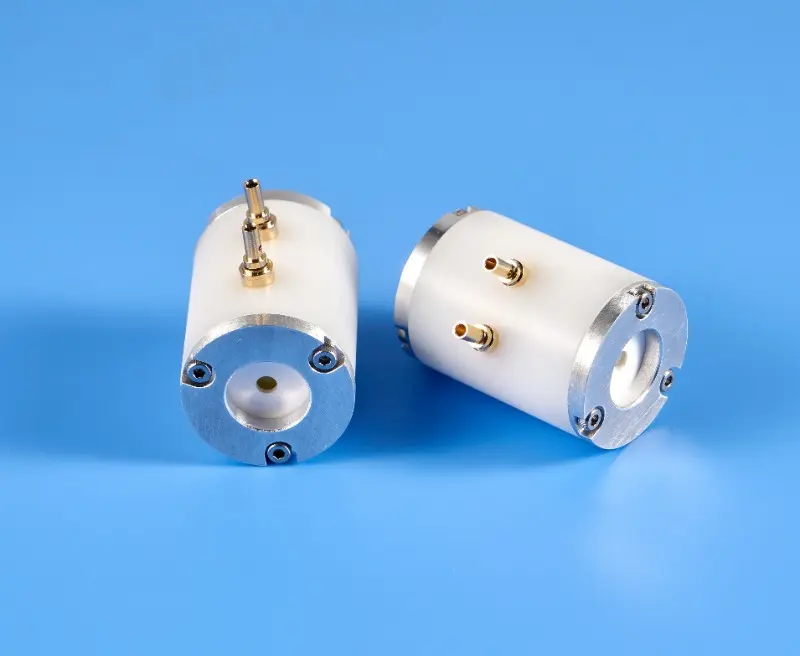

BBO Pockels Cell
• Wide optical bandwidth (0.2-2μm)
• High transmission
• High extinction ratio
• High laser damage threshold
• Extremely low Piezoelectric ringing effect
• Ceramic aperture is available
• Compact design, very easy to mount and adjust
• Robust, long service life (two-year quality guarantee)
BBO（Beta-Barium Borate, β-BaB2O4）based Pockels cells operate from approximately 0.2 - 1.65 µm and are not subject to tracking degradation. BBO exhibits low piezoelectric response, good thermal stability, and low absorption. Due to the low piezoelectric coupling coefficients of BBO, BBO Pockels cells function at repetition rates of hundreds of kilohertz. These Pockels cells work in regenerative amplifiers, high pulse repetition rate micro-machining lasers and high-average power lasers for material processing and metal annealing.
WISOPTIC has been granted of several patents for its technology of BBO Pockels cells. WISOPTIC’s mass products of BBO Pockels cell are gaining worldwide customers’ interest and trust for its high cost performance. Power supply and driver for BBO Pockels cell will be available soon.
WISOPTIC Technical Data - BBO Pockels Cell
Clear Aperture Diameter (mm) | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 | |||||
Crystal Size (mm) | 3x3x20 | 3x3x25 | 4x4x20 | 4x4x25 | 5x5x20 | 5x5x25 | 6x6x20 | 6x6x25 | 7x7x20 | 7x7x25 |
Quarter-wave Voltage (kV) (@1064 nm, DC) | 3.5 | 2.8 | 4.9 | 3.9 | 5.9 | 4.7 | 7.3 | 5.8 | 8.0 | 6.45 |
Capacitance | < 3 pF | |||||||||
Optical Transmission | > 98% | |||||||||
Contrast Ratio | > 1:1000 (30 dB) | |||||||||
Cell size (mm) (Dia x Length) | 25.4x35 | 25.4x40 | 25.4x35 | 25.4x40 | 25.4x35 | 25.4x40 | 25.4x35 | 25.4x40 | 30.0x35 | 30.0x40 |
Damage Threshold | 750 MW/cm2 (1064 nm,10 ns,10 Hz) | |||||||||
Types | PCD-2.5V-30 | PCD-4.5V-10 | PCD-2.5V-200/FS | PCD-2.5V-100/FS |
Maximal HV operation voltage | 3kV | 4.5kV | 3 kV | 3 kV |
Output polarity | Negative | Negative | Bipolar | Negative |
HV pulse rise time (typical) | - | - | 7 -9 ns | - |
HV pulse fall time (typical) | 7-9 ns | 14 -18 ns | 7 -9 ns | 7 -9 ns |
Maximal HV pulse repetition rate | 30 kHz | 10 kHz | 200 kHz | 150 kHz |
External triggering pulse amplitude | 3-5 V TTL (10 mA) | |||
DC supply | 23-25 V, 1.5 A | 23-25 V, 4.5 A | ||
HV power supply | 2.2kV, 7 W | 4 kV, 7 W | 2.2 kV, 60 W | 2.2 kV, 40 W |
