Factory Wholesale α-BBO, β-BBO Crystal

Advantages of WISOPTIC' Alpha-BBO

High UV transmittance

Large birefringence

Low bulk absorption suitable for high power applications

High damage threshold

Stable physical and mechanical properties

Advantages of WISOPTIC' Beta-BBO

• Broad phase matching (SHG) range from 409.6nm to 3500nm
• Wide transmission region from 190nm to 3500nm
• Large effective SHG coefficient
• High damage threshold of 10 GW/cm2 for 100 ps pulse-widths at 1064nm
• High optical homogeneity with Dn 10-6/cm2
• Wide temperature bandwidth of about 55° (for type I SHG 1064nm)

• Good mechanical and physical properties


  Contact Now
Product Details

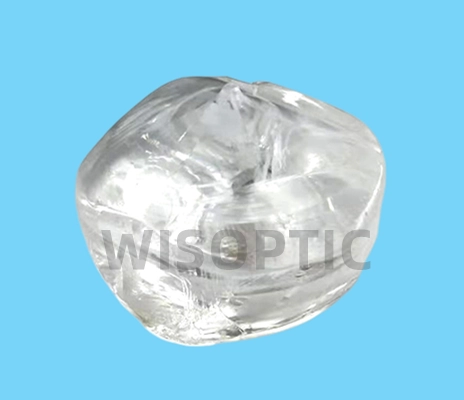

Barium Borate exists in three major crystalline forms: alpha, beta, and gamma. The low-temperature beta phase converts into the alpha phase upon heating to 925 °C. β-BBO differs from α-BBO by the positions of the barium ions within the crystal. Both phases are birefringent, however α-BBO has centric symmetry and thus does not has the same nonlinear properties as β-BBO.

α-BBO is a negative uniaxial crystal with a large birefringence over the broad transparent range from 189 nm to 3500 nm. β-BBO is also a negative uniaxial crystal, which is capable of phase matching for second-order photonic interactions over almost its entire transparency range (from the UV, 185 nm to the Near Infrared, 3.5 µm).

α-BBO  is widely used to make polarizers, polarizing beam displacers, phase retarders, birefringent plates, and time delay compensators especially those for UV and high power lasers.


β-BBO strengths include:

  • Wide transmission/transparency range

  • Broad phase-matching range

  • Large non-linear coefficient

  • High damage threshold

  • Wide thermal acceptance bandwidth

  • Low wavefront distortion


β-BBO applications include:

  • Harmonic generation using Nd:YAG and Nd:YLF lasers

  • NOPA with femtosecond (fs) pulses

  • OPO using Nd:YAG pump


WISOPTIC Standard Specifications - BBO

Dimension Tolerance

± 0.1 mm

Angle Tolerance

< ± 0.25°

Flatness

< λ/8 @ 632.8 nm

Surface Quality

< 10/5 [S/D]

Parallelism

< 20”

Perpendicularity

≤ 5'

Chamfer

≤ 0.2 mm @ 45°

Transmitted Wavefront Distortion

< λ/8 @ 632.8 nm

Clear Aperture

> 90% central area

Coating

AR @ 1064nm(R<0.2%); PR

Laser Damage Threshold

> 1 GW/cm2 for 1064nm, 10ns, 10Hz (polished only)
> 0.5 GW/cm
2 for 1064nm, 10ns, 10Hz (AR-coated)
> 0.3 GW/cm
2 for 532nm, 10ns, 10Hz (AR-coated)
