Dielectric, Dichroic & Metallic Mirrors

Featured Products
Narrow band laser line mirrors
Board band dielectric/metallic mirrors
Ultrafast laser mirrors
High reflectivity mirrors
High laser damage threshold mirrors

Standard and customized laser mirrors for many laser wavelengths: 1064 nm, 532 nm, 355 nm, 308 nm, 248 nm, 193 nm and broadband.

 Laser mirrors for use from the extreme ultraviolet (EUV) to the far IR

Laser Mirrors designed for dye, diode, Nd:YAG, Nd:YLF, Yb:YAG, Ti:sapphire, fiber, and many more laser sources

Laser mirror with shapes of: flat, right angle, concave, and other special shapes

Ultrafast laser line mirrors designed to provide high reflection with minimal Group Delay Dispersion (GDD) for femtosecond pulsed lasers including Er:Glass, Ti:Sapphire, and Yb:doped laser sources.


Contact Now
Product Details

Wisoptic’s optical mirrors are available for use with light in the UV, VIS, and IR spectral regions. Optical mirrors with a metallic coating have high reflectivity over the widest spectral region, whereas mirrors with a broadband dielectric coating have a narrower spectral range of operation; the average reflectivity throughout the specified region is greater than 99%. Hot, cold, backside polished, ultrafast, D-shaped, elliptical, parabolic, concave, crystalline, and laser line dielectric-coated optical mirrors are available for more specialized applications.

Dielectric mirror is an optical mirror made of thin layers of dielectric coating layers deposited on an optical substrate (UVFS or BK7).  Dielectric laser mirrors are used for laser lines, for narrowband or broadband wavelength ranges covering spectrum from UV to IR. Metallic mirrors are coated with protected gold, silver, or aluminum. Metallic mirrors are widely used due to a moderate level of reflection over a very broad spectral range. Protected gold coatings have the highest reflectance in IR, protected silver is the most efficient in VIS, while protected aluminum is an economical reflector over entire 300nm-IR range.

Optical mirrors can also be grouped by shapes: spherical, rectangular, elliptical or tailored shapes.



WISOPTIC Specifications - Optical Mirrors

Material

BK7, BOROFLOAT

Diameter Tolerance

+0.0/-0.15 mm

Thickness Tolerance

± 0.2 mm

Clear Aperture

> 80% of central area

S1 Surface Quality

< 20/10 [S/D]

S1 surface Flatness

< λ/8 @ 632.8 nm

S2 Surface Process

Fine ground

Parallelism S1/S2

≤ 30”

Chamfer

0.25-0.75mm face width x 45°±10°

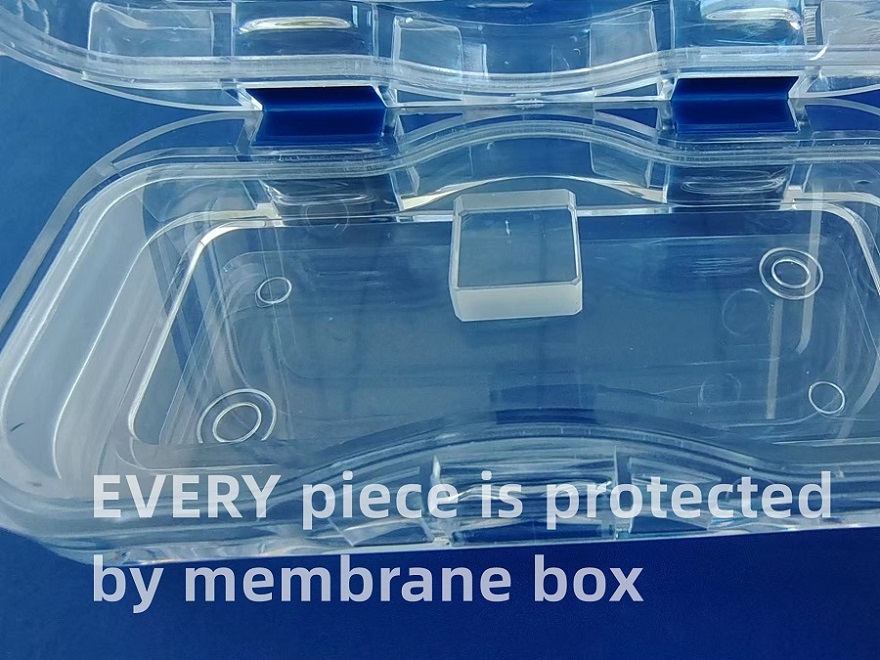

Dielectric, Dichroic & Metallic Mirrors.jpg

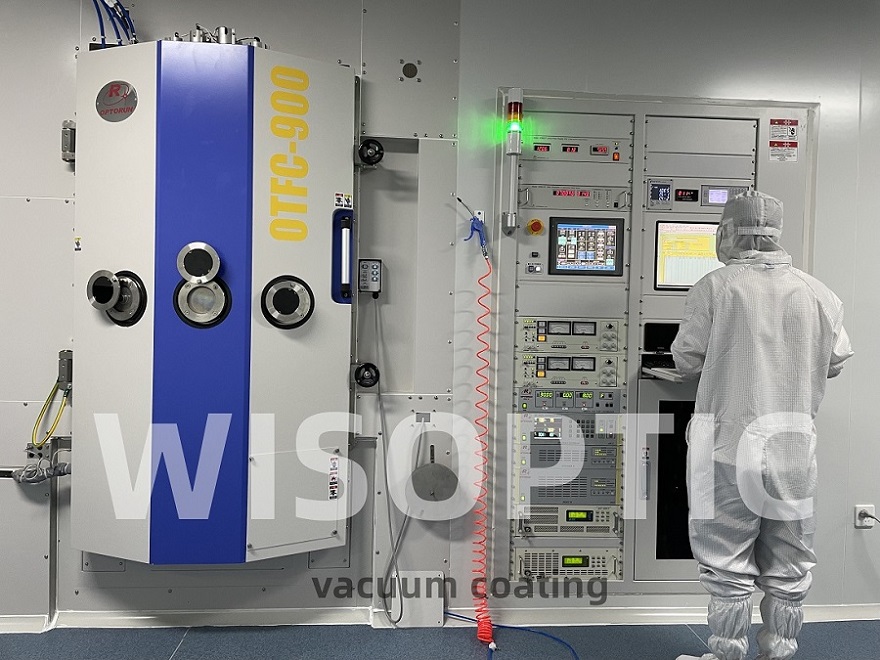

Dielectric, Dichroic & Metallic Mirrors.jpg

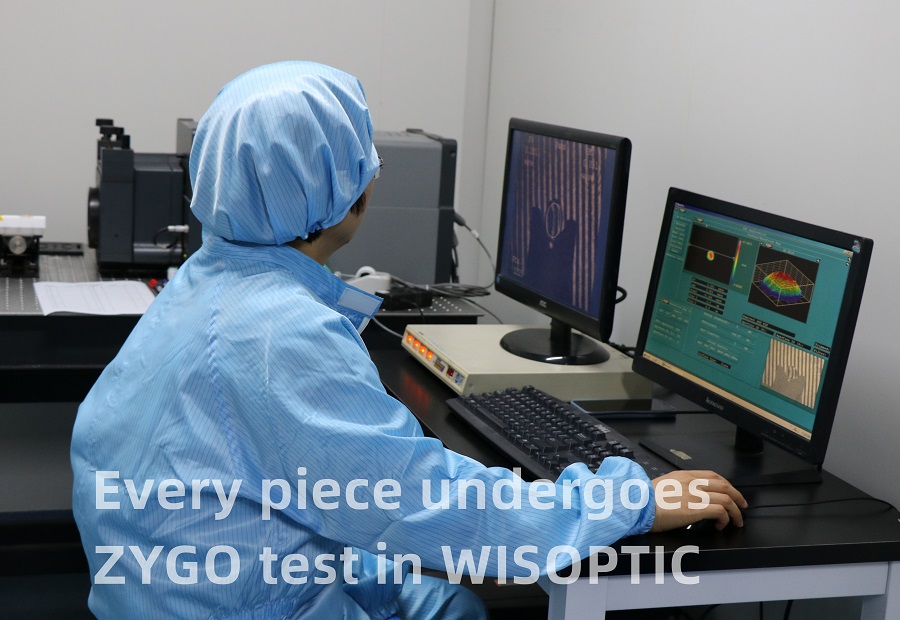

Dielectric, Dichroic & Metallic Mirrors.jpg
