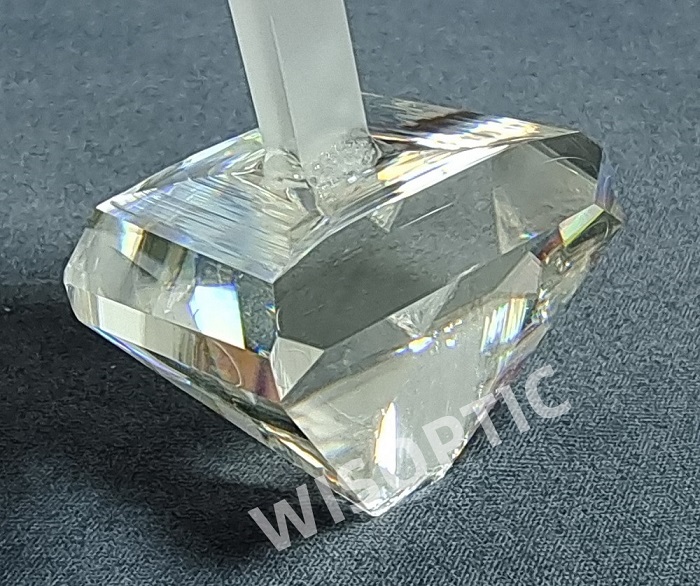

RTP Pockels Cell
Excellent extinction ratio: >30dB measured in our test chamber over -50°C/+70°C
High damage threshold of AR-coatings: >10J/cm² at 1064nm for 10ns pulses
Space- and defense qualified assembly process and hardware
Capability to perform an assembly on customer-supplied mounts
No long-term degradation under static HV (8kV/cm in 500 hours)
RTP Pockels cell has a number of benefits compared to other electro-optic materials:
Non hygroscopic
Low switching voltage
Good extinction ratio
No piezo and pyro-electric effects
Used either as RTP Q-switch or RTP pulsepicker

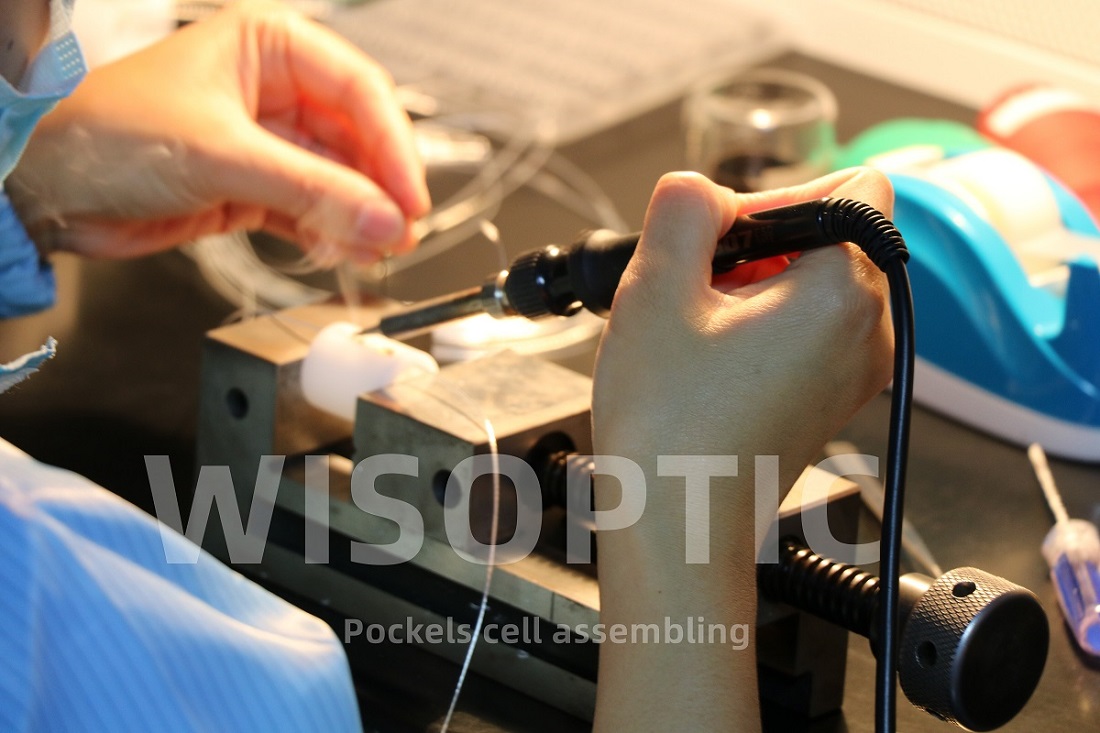

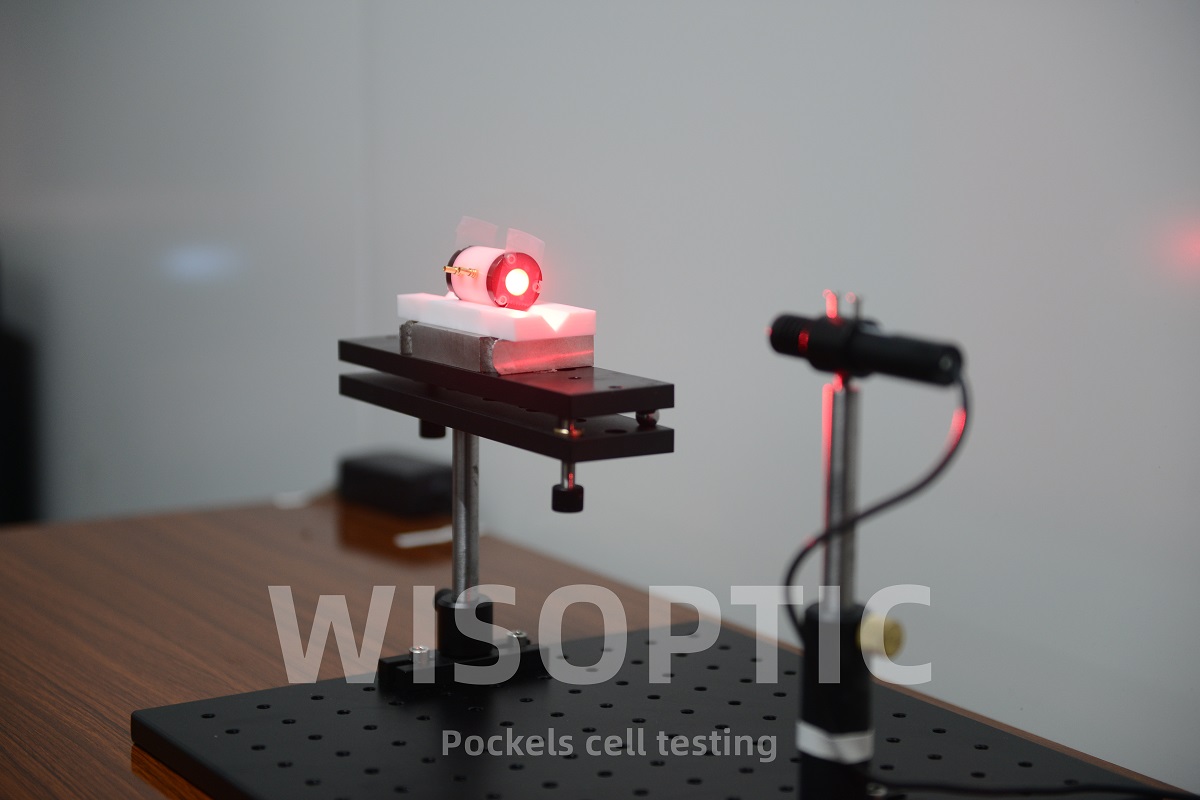

WISOPTIC has developed precise alignment techniques that enable us to offer our customers complete, plug-and-play RTP Pockels cell assemblies with a superior level of performance.
Crystal Size | 4x4x10 mm | 6x6x10 mm | 8x8x10 mm |
Quantity of Crystals | 2 | 2 | 2 |
Static Half-wave Voltage @ 1064 nm | X-cut: 1700 V Y-cut: 1400 V | X-cut: 2500 V Y-cut: 2100 V | X-cut: 3300 V Y-cut: 2750 V |
Extinction Ratio | X-cut: > 25 dB Y-cut: > 23 dB | X-cut: > 23 dB Y-cut: > 21 dB | X-cut: > 21 dB Y-cut: > 20 dB |
Capacitance | 5~6 pF | ||
Optical Transmission | > 99% | ||
Damage Threshold | > 600 MW/cm2 for 10 ns pulses @ 1064 nm (AR coating) |
