Pockels Cell Driver for Solid-state Lasers

Custom tailored for specific laser applications, including Q-switching of flashlamp pump lasers, Q-switching of DPSS lasers, pulse  injection into an amplifier, or for laser pulse picking that requires fast rise and fall time of HV pulse, cavity dumping, and CW beam  chopping applications.

Fully tested with in-house made Pockels cells

Various choices of voltage region, repetition rate, and pulse form

Compact design available

  High voltage drivers with operating voltage up to 9.8 kV and HV pulse repetition rate up to 6 MHz

  Competitive price and lead time

  Contact Now
Product Details

A Pockels Cell Driver is a high-voltage regulated power supply, either pulse or continuous, allowing to control a birefringence of an electro-optical crystal (KTP, KD*P, BBO, etc.) in order to drive the polarization direction of the light propagating through the crystal.

WISOPTIC has developed and produces a variety of Pockels cell drivers for different applications: from very simple compact devices for q-switching to precise and powerful fast models for pulse picking, cavity damping, regenerative amplifier control, etc.


Pockels Cell Driver for Q-Switching of Flashlamp Pumped Lasers

These drivers are designed for Q-switching of nanosecond flashlamp pumped lasers without use of phase retardation plates, for example to drive a DKDP Pockels cell in YAG lasers for aesthetic therapy. High voltage is applied to Pockels cell in order to inhibit oscillation. Pockels cell is opened by negative polarity pulse allowing laser to radiate.

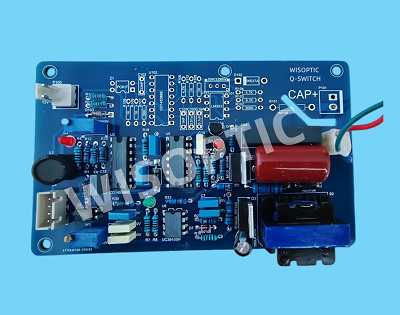

Pockels Cell Driver for Solid-state Lasers.png


BBO Pockels Cell Drivers

● HV rise/fall time: 2-4 ns @ 800 V, 6-12 ns @ 2400 V, 10-20 ns @ 4000 V

● HV pulse amplitude up to 4.5 kV

 Pulse repetition rate up to 200 kHz



General Specifications

Types

PCD-2.5V-30

PCD-4.5V-10

PCD-2.5V-200/FS

PCD-2.5V-100/FS






Maximal HV operation voltage

3 kV

4.5 kV

3 kV

3 kV

Output polarity

Negative

Negative

Bipolar

Negative

HV pulse rise time (typical)

-

-

7 -9 ns

-

HV pulse fall time (typical)

7-9 ns

14 -18 ns

7 -9 ns

7 -9 ns

Maximal HV pulse repetition rate

30 kHz

10 kHz

200 kHz

150 kHz

External triggering pulse amplitude

3-5 V TTL (10 mA)

DC supply

23-25 V, 1.5 A

23-25 V, 4.5 A

HV power supply

2.2kV, 7 W

4 kV, W

2.2 kV, 60 W

2.2 kV, 40 W
