GTR-KTP Crystal

● Low absorption at 1064nm & 532nm
● Higher grey track resistance than normal KTP (5X-10X)
● Higher efficiency than normal KTP
● Broad temperature bandwidth
● High quality crystals with competitive pricing
● Non-hydroscopic, chemically and mechanically stable
● High thermal conductivity


  Contact Now
Product Details

Gray Track Resistant (GTR) KTP crystals developed by hydrothermal method overcomes the common phenomenon of electrochromism of the flux-grown KTP, thus has many advantages such as high electrical resistivity, low insertion loss, low half-wave voltage, high laser damage threshold, and wide transmission band. So it's very suitable for high power density applications, where regular flux-grown KTP crystals will suffer from gray track damage.

GTR-KTP crystal has gray track resistance sufficiently greater than typical flux-grown KTP. It has wide angular bandwidth and small walk-off angle and broad temperature and spectral bandwidth. GTR-KTP crystals can be widely used in medical, military and meteorology fields.

GTR-KTP Applications

• SHG of Nd-doped laser
• Frequency mixing (SFM) of Nd and diode lasers to produce blue outputs
• Parametric sources (OPG, OPA and OPO) for 600 - 4500nm tuneable outputs
• EO modulators, optical switches and directional couplers
• Optical waveguides for integrated NLO and EO devices
• SHG and THG using high power Nd:YAG (1342 and 1319nm)


GTR-KTP Optical Specifications

Dimensions

As large as 10×10×15mm

Extinction Ratio

>25 dB

Optical Transparency Range

500~2500 nm

Laser-induced Damage Threshold

>600 MW/cm2 @1064nm,10ns,10Hz, AR coated

Insertion Loss

<1.0% @1064nm

Operation Temperature

-40 ℃~+70 ℃

Frequency Range

as high as 4 MHz


GTR-KTP Processing Specifications

Dimension Tolerance

(W +/-0.1 mm) x (H+/-0.1 mm) x (L + /-0.2 mm)

Transmitting Wavefront Distortion

lambda/8 @ 633 nm

Clear Aperture

> 90% central area

Flatness

lambda/8 @ 633 nm

Surface Quality (Scratch/Dig)

10/5 per MIL-O-13830B

Parallelism

< 20 arc seconds

Perpendicularity

<15 arc minutes

Angle Tolerance

Dq <0.3, Df <0.3

AR Coating

R< 0.1% at 1064nm and R<0.3% at 532 nm

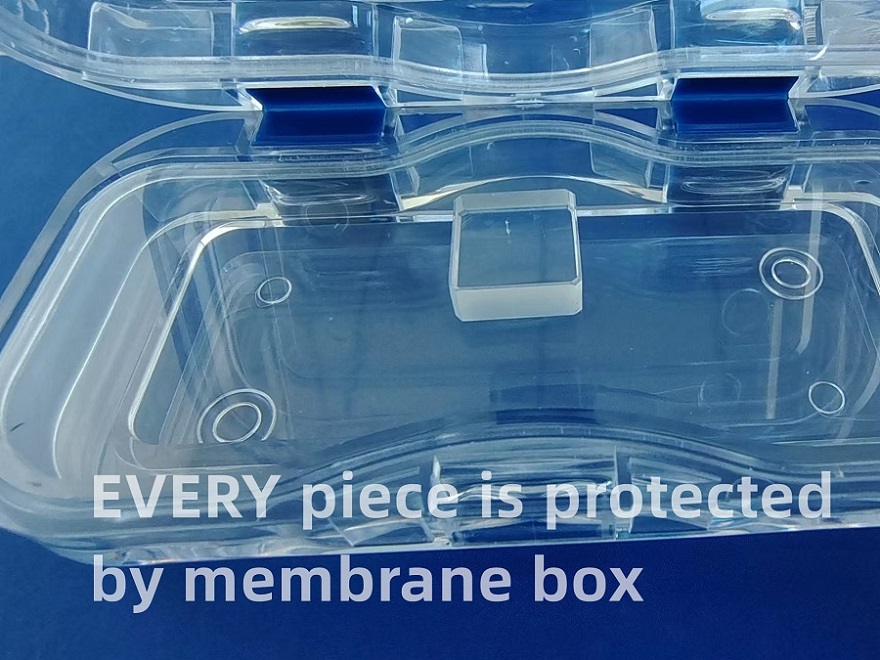

GTR-KTP Crystal.jpg


GTR-KTP Crystal.jpg


GTR-KTP Crystal.jpg


GTR-KTP Crystal.jpg
