BBO Pockels Cell

  • Duel crystal cells available

  • Voltage contrast ratios up to 15000:1

  • Lowest loss Pockels cells with TOP quality BBO crystals developed in-house

  • Long and proven lifetime, 2 years guarantee

  • 20 year experience servicing the most demanding laser applications

  • KDP, KD*P, KTP, RTP, BBO, and LN are grown by WISOPTIC in-house

  • Being purchased and trusted by dozens of laser companies worldwide

  • Free technical support always

  • Competitive price

  • Fast delivery


  Contact Now
Product Details

The high damage threshold makes BBO cells more attractive than others in the high power systems. Like LiNbO3 Pockels cells, BBO Pockels cells work in transverse mode, which makes the cells very compact, and the half-wave voltage designable. BBO Pockels cells are also suitable for systems with high repetition rates.

WISOPTIC has been granted of several patents for its technology of BBO Pockels cells. WISOPTIC’s mass products of BBO Pockels cell are gaining worldwide customers’ interest and trust for its high cost performance. Power supply and driver for BBO Pockels cell is available.

Applications:

● Q-switching

● Regenerative amplifier

● Pulse picker

● Cavity dumping

● High speed optical switch

● Beam chopper

● Optical power stabilizer


Clear Aperture

Diameter (mm)

2.5

3.5

4.5

5.5

6.5

Crystal Size (mm)

3x3x20

3x3x25

4x4x20

4x4x25

5x5x20

5x5x25

6x6x20

6x6x25

7x7x20

7x7x25

Quarter-wave Voltage (kV) (@1064 nm, DC)

3.5

2.8

4.9

3.9

5.9

4.7

7.3

5.8

8.0

6.45

Capacitance

< 3 pF

Optical Transmission

> 98%

Contrast Ratio

 > 1:1000 (30 dB)

Cell size (mm)

 (Dia x Length)

25.4x35

25.4x40

25.4x35

25.4x40

25.4x35

25.4x40

25.4x35

25.4x40

30.0x35

30.0x40

Damage Threshold

750 MW/cm2 (1064 nm,10 ns,10 Hz)

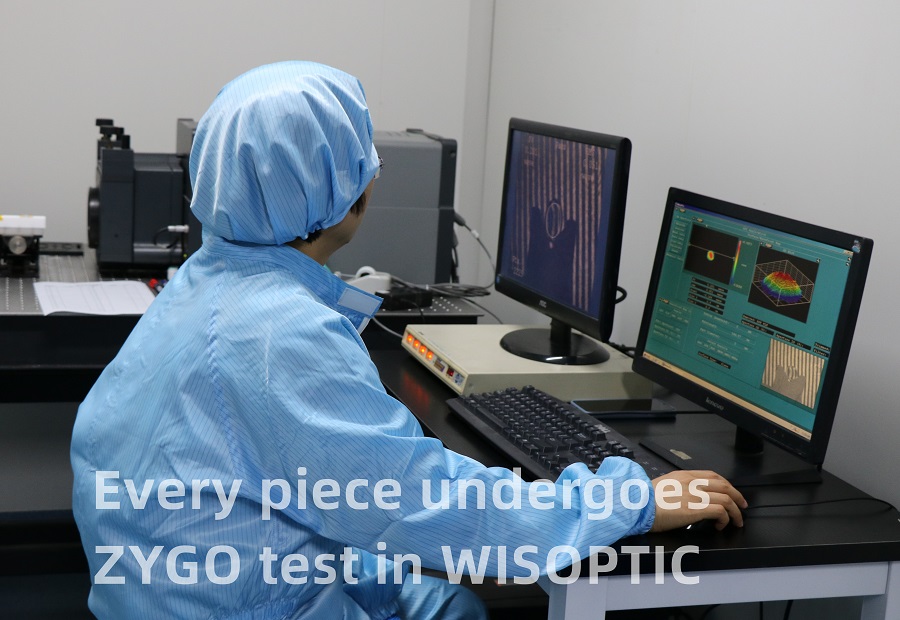

BBO Pockels Cell.jpg

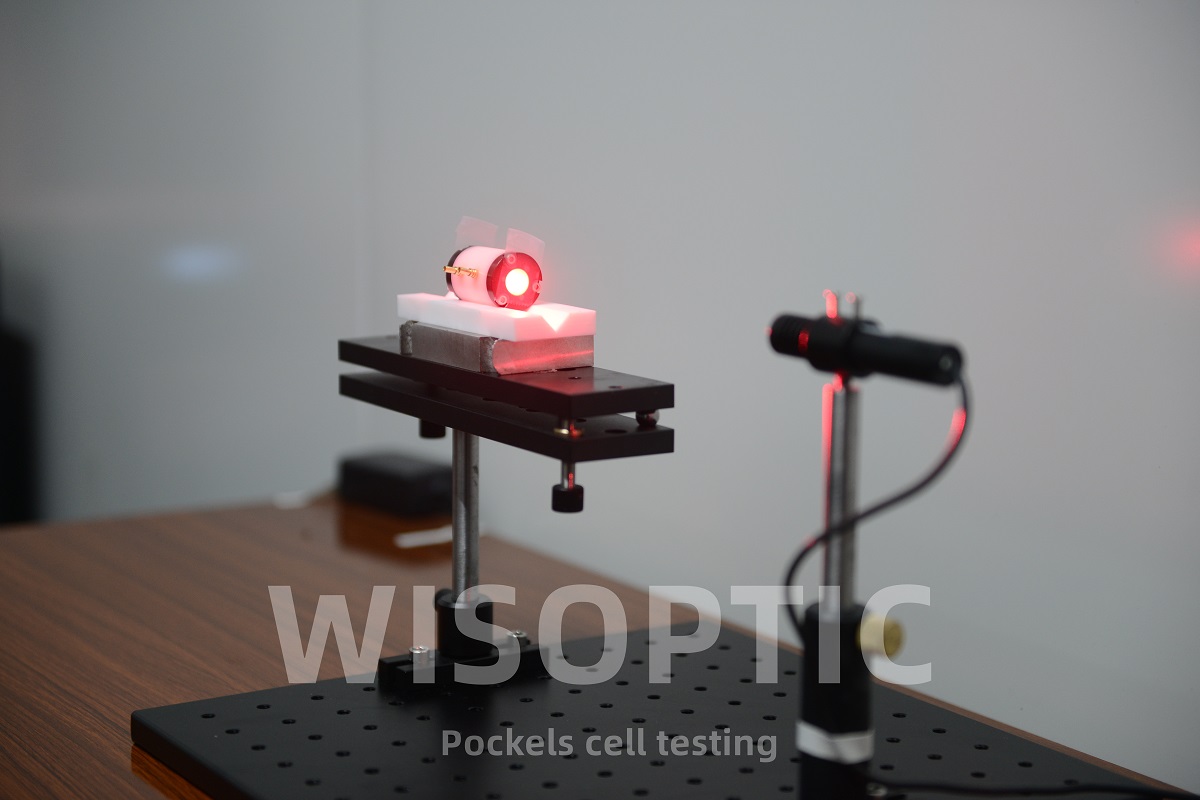

BBO Pockels Cell.jpg
