Large KTA Crystal with Super Optical Quality

High homogeneity, excellent internal quality
Top quality of surface polishing
Large block for various size (e.g. 10x10x30mm, 5x5x35mm)
Large nonlinear coefficient, high conversion efficiency
Broad transparency range, large temperature matching width
AR coatings for wave range from visual light to 3300 nm
Very competitive price, quick delivery


  Contact Now
Product Details

Compared to more commonly used KTP crystal, KTA crystal has larger non-linear optical and electro-optical coefficients. KTA has the added benefit of significantly reduced absorption in the 2 to 5 μm region.  It has found more and more applications in second harmonic generation (SHG), sum and difference frequency generation (SFG)/(DFG), optical parametric oscillation/ amplification (OPO/OPA), and electro-optical Q-switching.

WISOPTIC do in-house growing and processing KTA crystal with high optical quality and various options of dimensional and coating specifications.


Features of KTA


  • Large nonlinear optical coefficients

  • Wide angular bandwidth and small walk-off angle

  • Broad temperature and spectral bandwidth

  • Large electro-optic coefficients

  • Lower absorption in the 3-4 μm range than KTP.

  • Nonhydroscopic, chemically and mechanically stable

  • High thermal conductivity

  • High damage threshold


 WISOPTIC Standard Specifications* - KTA

Dimension Tolerance

± 0.1 mm

Cutting Angle Tolerance

< ± 0.25°

Flatness

< λ/8 @ 632.8 nm

Surface Quality

< 10/5 [S/D]

Parallelism

< 20”

Perpendicularity

≤ 5'

Chamfer

≤ 0.2mm @ 45°

Transmitted Wavefront Distortion

< λ/8 @ 632.8 nm

Clear Aperture

> 90% central area

Coating

AR@1064nm(R<0.2%) & 1533nm(R<0.5%) & 3475nm(R<9%)
or upon request

Laser Damage Threshold

500 MW/cm2 for 1064nm, 10ns, 10Hz (AR-coated)

* Products with special requirement upon request.

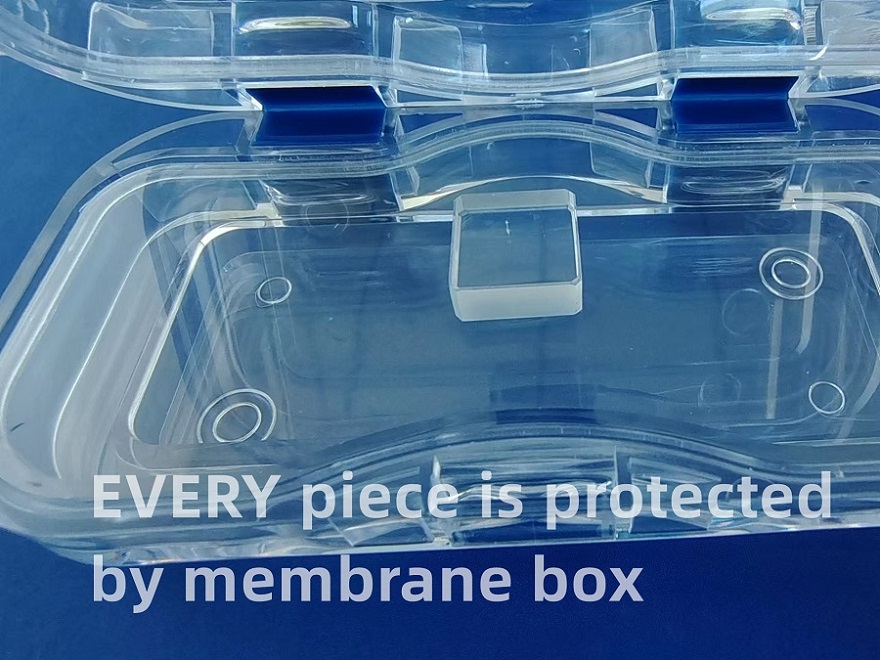

Large KTA Crystal with Super Optical Quality.jpg


Large KTA Crystal with Super Optical Quality.jpg


Large KTA Crystal with Super Optical Quality.jpg


Large KTA Crystal with Super Optical Quality.jpg
