Er:YAG for Medical and Dentistry Laser at 2.94μm

Advantages of Er:YAG Crystals Made By WISOPTIC

  • Isotropic crystal (cubic symmetry)

  • High thermal conductivity

  • Strong absorption bandwidth near 1470 nm corresponding to InGaAsP/InP laser diode emission

  • Emission spectra at 1617 nm is free from absorption in the atmosphere

  • Sizes from 3 mm to 10 mm diameter, with lengths up to 150 mm long


  Contact Now
Product Details

Erbium doped Yttrium Aluminum Garnet (Er:Y3Al5O12 or Er:YAG) combine various output wavelength with the superior thermal and optical properties of YAG. The emission wavelength of Er:YAG with doping concentration of 50% is 2940nm, which is at the position of water absorption peak and can be strongly absorbed by water molecules. Therefore, Er:YAG laser is widely used in plastic surgery and dentistry.


Application examples

  • CW and Q-switched eye-safe (~1.6 μm) in-band pumped lasers with nearly quantum defect limited efficiency for military applications including LIDAR, telemetry, or active imaging

  • Channel waveguide eye-safe (~1.6 µm) in-band pumped lasers with diffraction-limited output for long-distance telemetry and ranging

  • CW and Q-switched ~3 µm lasers for oral surgery, dentistry, implant dentistry, and otolaryngology

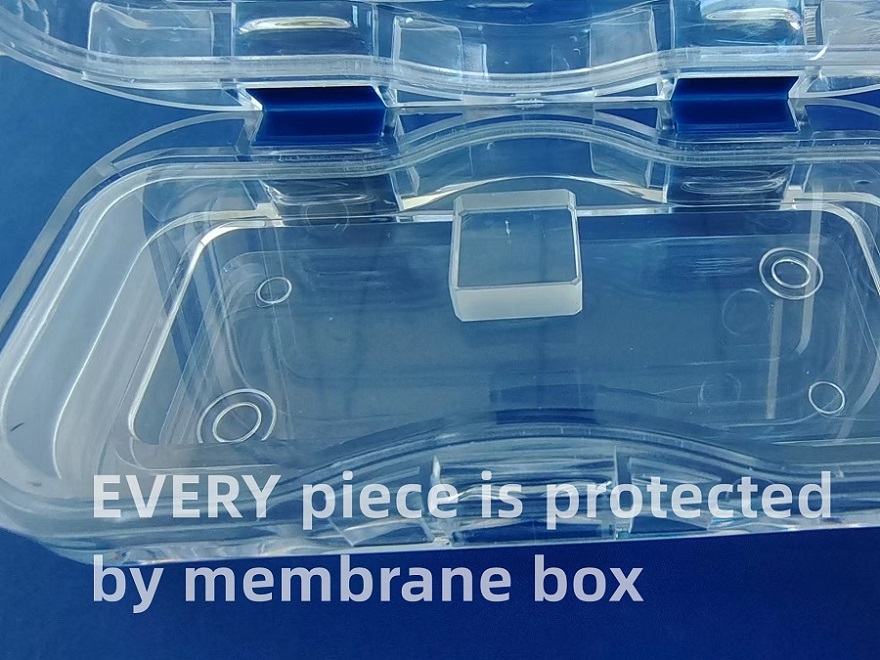

Er:YAG for Medical and Dentistry Laser at 2.94μm.jpg

Dopant Ion

Er3+ concentration range

0.1 - 100 atomic %

Dopant Ion Density @ 1 atomic %


Y3+ Site

1.38 x 1022 cm-3

Al3+ Site (IV)

1.38 x 1022 cm-3

Al3+ Site (VI)

0.92 x 1022 cm-3

Common Operating Specs


50% Er:YAG

Low Doped (0.1% - 1.0%) Er:YAG

Emission Wavelength

2.94 μm

1.6 μm

Laser Transition

4I11/2 → 4I13/2

4I13/2 → 4I15/2

Flouresence Lifetime

230 μs

2+/-5 ms

Pump Wavelength

600-800 nm

1.5 μm

Physical Properties

Coefficient of Thermal Expansion

6.14 x10-6 K-1

Thermal Diffusivity

0.041 cm2s-2

Thermal Conductivity

11.2 Wm-1 K-1

Specific Heat (Cp)

0.59 Jg-1K-1

Thermal Shock Resistant

800 Wm-1

Refractive Index @ 632.8 nm

1.83

dn/dT (Thermal Coefficient of Refractive Index) @ 1064nm

7.8 10-6K-1

Molecular Weight

593.7 gmol-1

Melting Point

1965°C

Density

4.56 gcm-3

MOHS Hardness

8.25

Young’s Modulus

335 Gpa

Tensile Strength

2 Gpa

Crystal Structure

Cubic

Standard Orientation

<111>

Y3+ Site Symmetry

8D2

Lattice Constant

a=12.013 Å


Er:YAG for Medical and Dentistry Laser at 2.94μm.jpg


Er:YAG for Medical and Dentistry Laser at 2.94μm.jpg


Er:YAG for Medical and Dentistry Laser at 2.94μm.jpg
