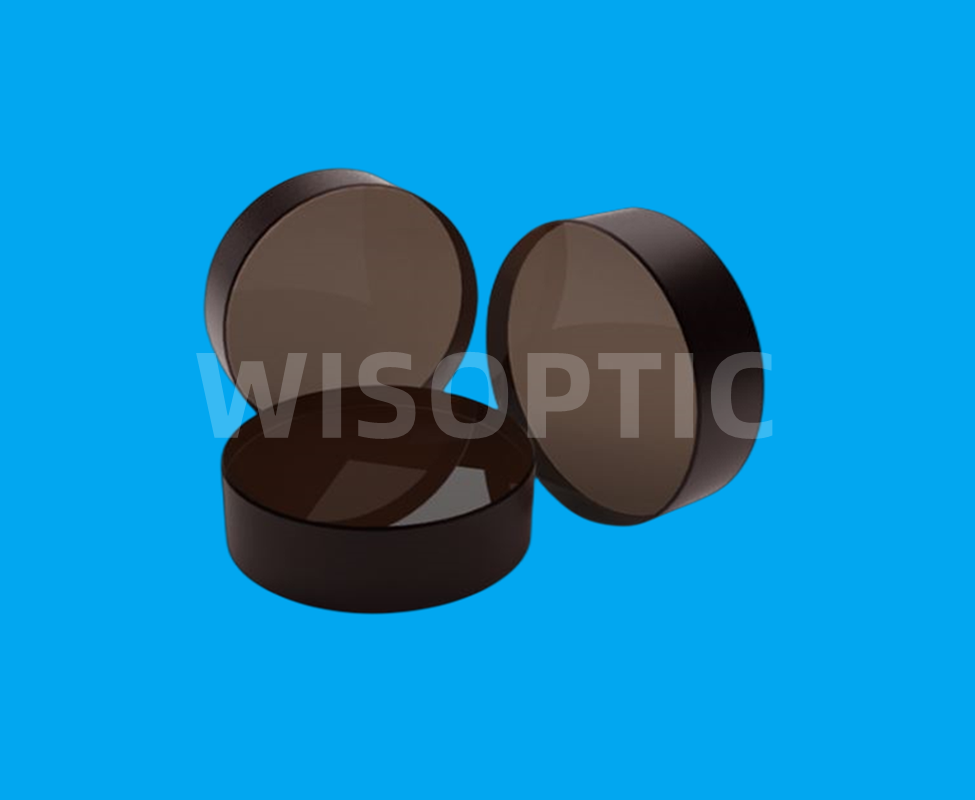

Cr:YAG for Solid-State High Power Passive Q-Switching

Main features

  • Good chemical stability and reliability

  • Long lifetime and good thermal conductivity

  • Easy to operate, no need of any external driving system

  • Custom crystals available upon request

  • Compact design

  • Working frequency as high as 10 kHz





  Contact Now
Product Details

Cr:YAG (Chromium doped Ytterium Aluminum Garnet, Cr:Y3Al5O12)  crystal is an excellent material for passive Q-switching of Nd:YAG and  other Nd or Yb doped lasers in the wavelength range of 0.8 to 1.2 μm. One of the remarkable features of Cr:YAG is its high damage threshold (500-1000 MW/cm2). Its absorption band extends from 800 nm to 1200 nm and peaks at around 1060nm with a very large absorption cross section.  Passive Q-switched lasers incorporating Cr:YAG crystals have been  extensively fabricated at low cost and with reduced system size and  weight.


Advantages of Cr:YAG crystal:

  • Well proven as a passive Q-switch

  • Excellent physical properties - chemically stable, good thermal conductivity and high damage threshold

  • High optical SHG conversion

By using Cr:YAG, the pulse width of passively Q-switched lasers could be as short as 5 ns for diode pumped Nd:YAG lasers, and the repetition could be as high as 10 kHz for diode pumped Nd:YVO4 lasers. Furthermore, an efficient output at 532 nm, 355 nm or 266 nm can be generated by a subsequent intracavity SHG in KTP or LBO, or THG/FOHG in LBO or BBO for diode pumped and passively Q-switched Nd:YAG or Nd:YVO4 laser. Cr:YAG is also a laser crystal with tunable output from 1.35 µm to 1.55 µm, and can be used to make ultrashort pulse (ps or fs) laser when pumped by Nd:YAG laser at 1064 nm.

Application examples

  • Passively Q-switched lasers operating at 1µm - Nd and Yb doped YAG, YLF an YVO4 (for laser rangefinders, LIDAR, and LIBS systems)

  • Laser systems where short pulses are required


WISOPTIC Specifications of Cr4+: YAG Crystal

Dimensions

Surface Area

2×2 mm2 ~ 14×14mm2

Length

0.1mm ~ 12mm

Doping Concentration

0.05mol% ~ 0.6mol%

Initial Transmission

5% ~ 95%

Flatness

< λ/10 @633nm

Wavefront Distortion

< λ/6 @633nm

Parallelism

< 30"

Surface Quality [S/D]

10/5

AR-coating

R<0.2% @ 1064 nm
