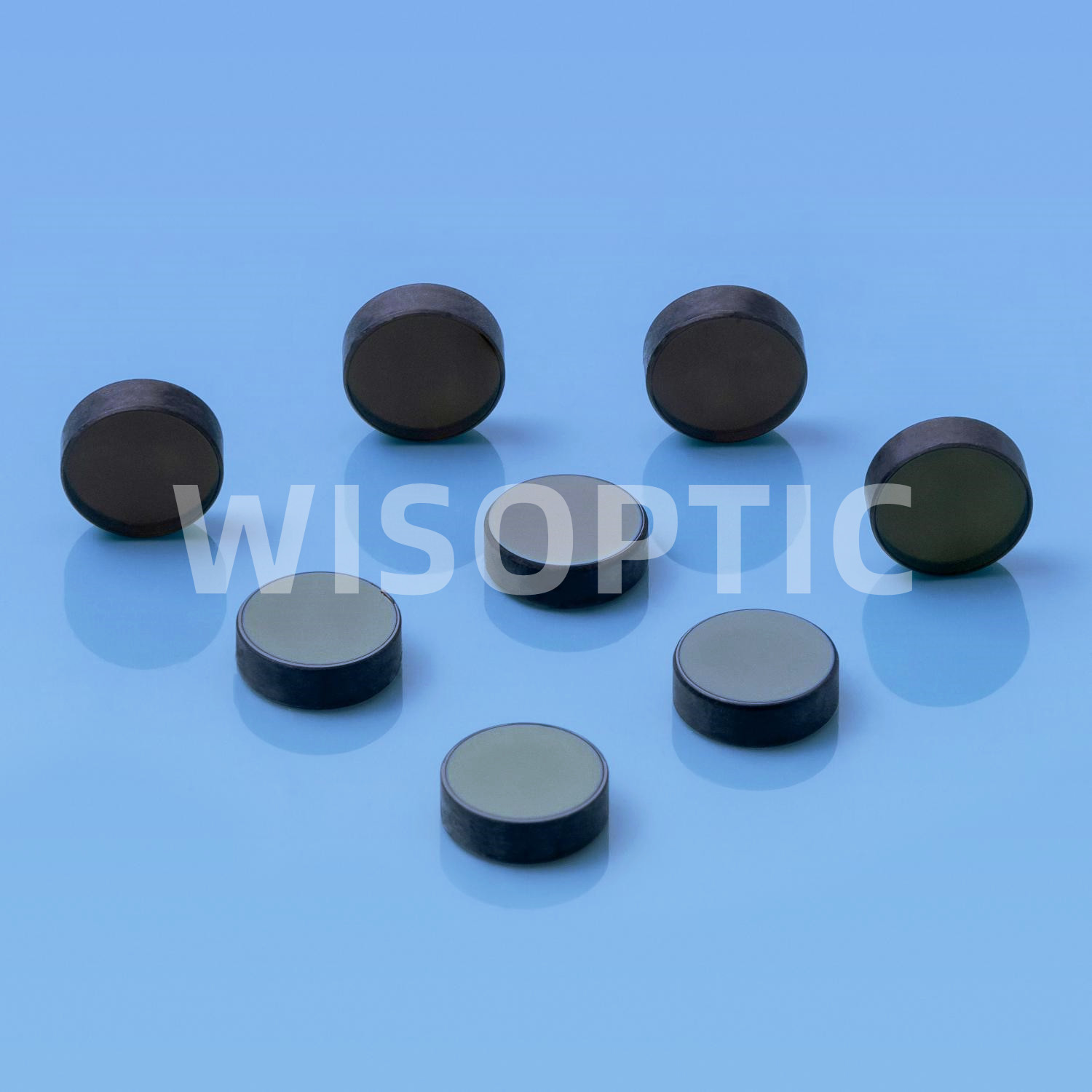

Cr:YAG Crystal

Main features

  • Good chemical stability and reliability

  • Long lifetime and good thermal conductivity

  • Easy to operate, no need of any external driving system

  • Custom crystals available upon request

  • Compact design

  • Working frequency as high as 10 kHz





  Contact Now
Product Details

Cr:YAG  or Cr4+:YAG (Chromium doped Ytterium Aluminum Garnet, Cr:Y3Al5O12)  is an excellent  and widely used electro-optic material for passive Q-switching diode pumped or lamp-pumped Nd:YAG, Nd:YLF, Nd:YVO4 and other Nd or Yb doped lasers at wavelength 800~1200 nm. With advantages of chemical stability, durable, UV resistant, good thermal conductivity and high damage threshold (>500 MW/cm2 ) and being easy to be operated, Cr:YAG is popularly used to substitute for many traditional materials such as LiF, organic dyes and color centers.

Cr:YAG crystal strengths include:

  • Well proven as a passive Q-switch

  • Excellent physical properties - chemically stable, good thermal conductivity and high damage threshold

  • High optical SHG conversion

By using Cr:YAG, the pulse width of passively Q-switched lasers could be as short as 5 ns for diode pumped Nd:YAG lasers, and the repetition could be as high as 10 kHz for diode pumped Nd:YVO4 lasers. Furthermore, an efficient output at 532 nm, 355 nm or 266 nm can be generated by a subsequent intracavity SHG in KTP or LBO, or THG/FOHG in LBO or BBO for diode pumped and passively Q-switched Nd:YAG or Nd:YVO4 laser. Cr:YAG is also a laser crystal with tunable output from 1.35 µm to 1.55 µm, and can be used to make ultrashort pulse (ps or fs) laser when pumped by Nd:YAG laser at 1064 nm.

Application examples

  • Passively Q-switched lasers operating at 1µm - Nd and Yb doped YAG, YLF an YVO4 (for laser rangefinders, LIDAR, and LIBS systems)

  • Laser systems where short pulses are required


WISOPTIC Specifications of Cr4+: YAG Crystal

Dimensions

Surface Area

2×2 mm2 ~ 14×14mm2

Length

0.1mm ~ 12mm

Doping Concentration

0.05mol% ~ 0.6mol%

Initial Transmission

5% ~ 95%

Flatness

< λ/10 @633nm

Wavefront Distortion

< λ/6 @633nm

Parallelism

< 30"

Surface Quality [S/D]

10/5

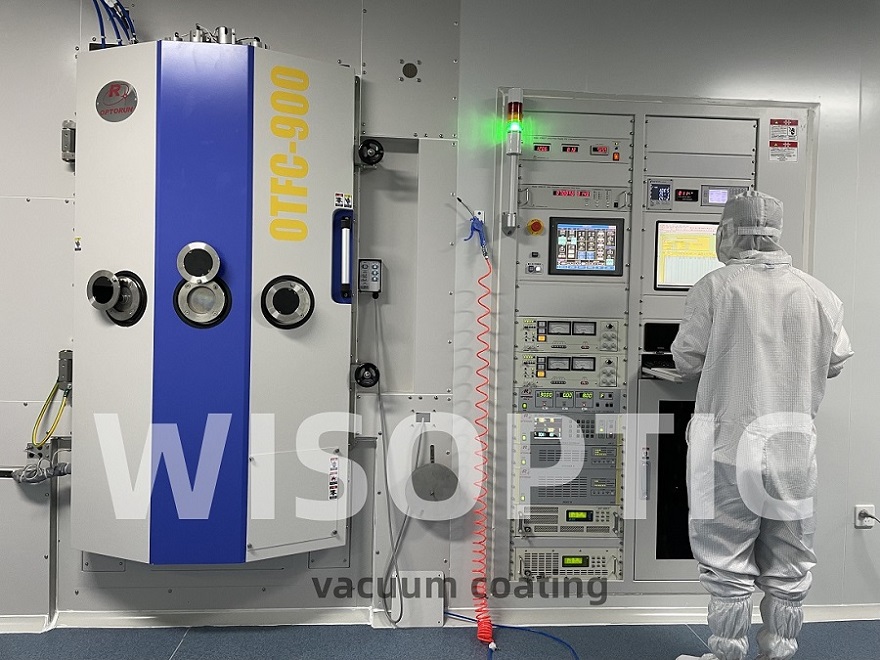

AR-coating

R<0.2% @ 1064 nm
