Dye Laser Cell

Totally made in-house and customer design are available

Narrow band output with wavelength 585nm, 595nm, 650nm, and 660nm

High output energy

High conversion effeciency of input-output energy

Stable performance of long-time operation

Fast delivery with mass production capability

Very competitive price

Contact Now
Product Details

Solid Laser Dyes

There is some work on dye lasers based on solid media, e.g. with the dye in a polymer matrix. Obviously, the solid-state form has many advantages, particularly concerning handling. A problem, however, is the rapid degradation, either for a limited time by triplet excitation, or permanently by destruction of dye molecules.
Many dyes can be pumped with a green laser such as a frequency-doubled solid-state laser or an argon ion laser. For 532nm pumping, for example, laser emission may then be in the green, yellow, orange, red or near infrared spectral region.

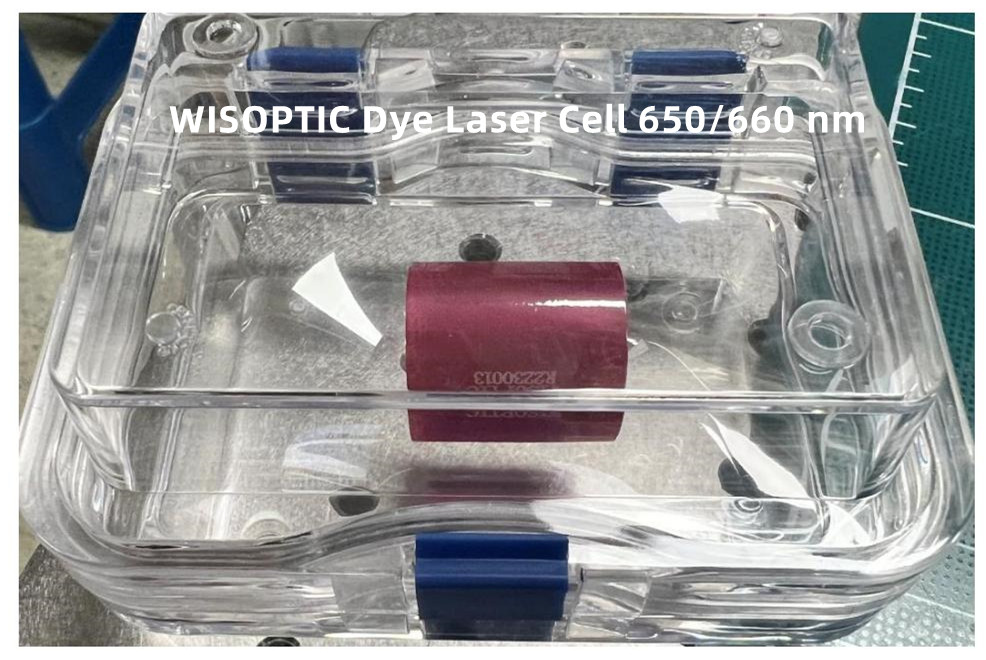

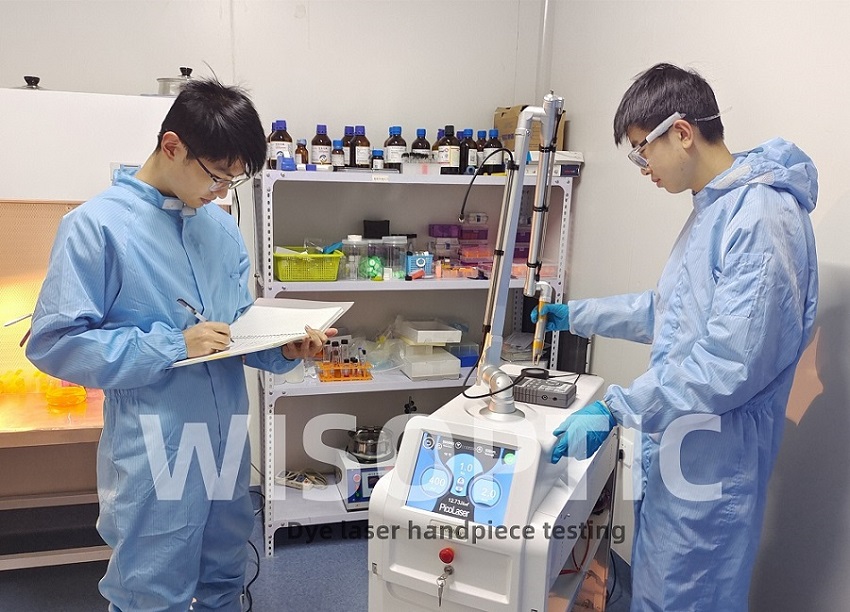

WISOPTIC's Dye Laser Cell 585/595nm and 650/660nm are developed in-house and then be used to make dye laser handpieces. With dye laser handpieces, it's very easy to produce laser beam at 585/595nm or 650/660nm (only need a normal laser source of 532nm). Dye laser 585/595nm is used mainly to treat facial telangiectasia, and dye laser 650/660nm is for removal of green tattoo, etc.

Dye laser handpiece made from WISOPTIC has very high conversion efficiency: 65%~75% for 532/585nm, 45%~55% for 532/650nm.

Out put energy higher than 100mJ @ 585/595, and > 70mJ @ 640/660nm.

Length

25 ± 0.5 mm (or customized size)

Diameter

25 ± 0.2 mm (or customized size)

Beam diameter

Input: 8 mm; Output: 2~3 mm

Parallelism of end faces

 1

Coating

Uncoated

Conversion efficiency

532-585nm: 65%~75%; 532-650nm: 45%~55%

Material

Proprietary trade secret

Life time

> 40K pulses

Dye Laser Cell.jpg


Dye Laser Cell.jpg


Dye Laser Cell.jpg


Dye Laser Cell.jpg
