Dye Handpiece with 585nm

Dye laser handpiece made from WISOPTIC has the following advantages:

• In-house made dye laser cells which can be produced according to customer' design

• Prototype or batch production

• Very high conversion efficiency: 65%~75% for 532/585nm, 45%~55% for 532/650nm

Short lead time, quick delivery

Resonable price



  Contact Now
Product Details

Dye Laser Handpiece are devices that screw onto the end of the laser's arm and convert the energy that the laser produces into different, new wavelengths of light.The two most common dye handpiece wavelengths are 585 nm and 650 nm, which attach to Q-switched Nd:YAG lasers. For these wavelengths to be produced, the Nd:YAG's 1064 nm wavelength is frequency-doubled to produce the 532 nm wavelength, which is then converted by the dye handpieces to produce either 585 nm or 650 nm.

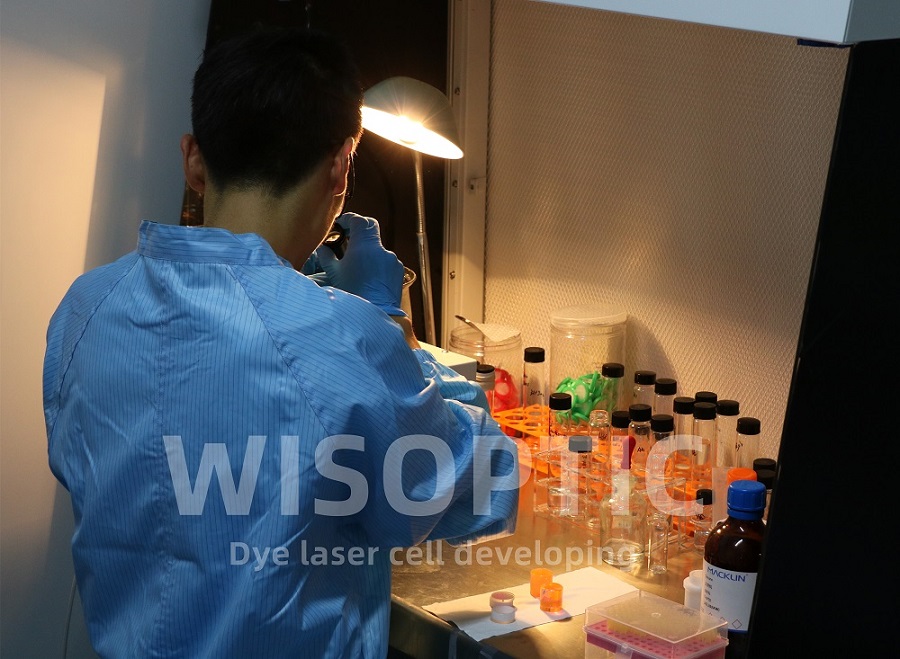

WISOPTIC use in-house made dye laser cells to make dye laser handpieces. Pure input beam at 532nm is required to produce output beams of 585nm/595nm (energy over 100 mJ) and 650nm/660nm (energy over 80 mJ). Dye laser handpiece 585nm/595nm is used mainly to treat facial telangiectasia, and 650nm/660nm is for removal of green tattoo, etc.


WISOPTIC 585/595 Dye Handpiece Kit includes:

  • 585/595 Dye Cell (Orange)

  • 585/595 Input Mirror with special coating

  • 585/595 Output Mirror with special coating


WISOPTIC 650/660 Dye Handpiece Kit includes:

  • 650/660 Dye Cell (Red)

  • 650/660 Input Mirror with special coating

  • 650/660 Output Mirror with special coating


Length

25 ± 0.5 mm (or customized size)

Diameter

25 ± 0.2 mm (or customized size)

Beam diameter

Input: 8 mm; Output: 2~3 mm

Parallelism of end faces

≤ 1’

Coating

Uncoated

Conversion efficiency

532-585nm: 65%~75%; 532-650nm: 45%~55%

Material

Proprietary trade secret

Life time

> 40k pulses


Dye Handpiece with Long Quality Guarantee 585nm, 650nm.jpg


Dye Handpiece with Long Quality Guarantee 585nm, 650nm.jpg


Dye Handpiece with 585nm


Dye Handpiece with 585nm
