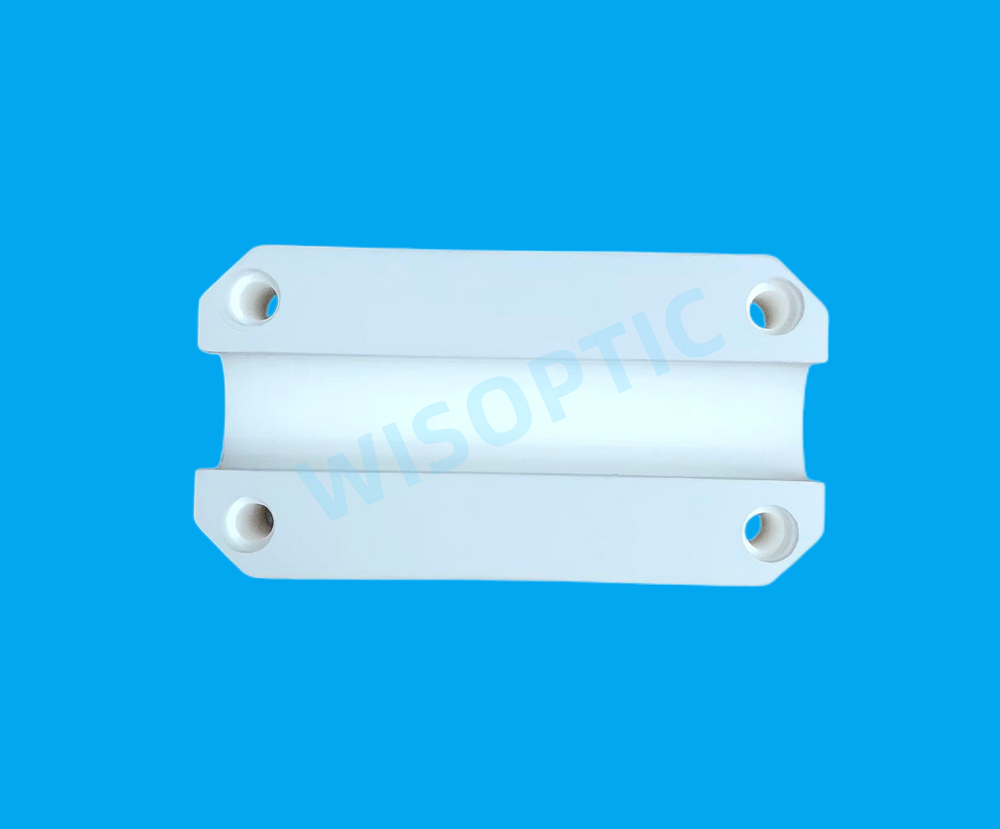

Alumina Ceramic Laser Cavity
• Extended life time
• Higher efficiency/output performance
• Prolonged life time
• Higher reflectance over a broader range of wavelengths
• Uniform beam quality
• Inert to all regular cleaning chemicals
• Greater thermal stability, mostly at higher temperatures because of a very low coefficient of thermal expansion
Alumina Ceramic Reflectors are designed primarily for use in pumping chambers for many diverse laser
systems, e.g. YAG lasers. They are manufactured from a specially developed high purity
alumina ceramic formulation which include a
highly diffuse reflection characteristic over a broad wavelength band,
high mechanical strength, superior thermal conductivity and excellent
dimensional and electrical stability at all operating temperatures.
WISOPTIC’s ceramic laser reflectors can be found in a broad range of applications including:
• Intense Pulse Lamp (IPL) systems for use with tattoo and hair removal
• Industrial lasers for use with welding, cutting and marking
• Medical lasers used in surgical and ophthalmic applications
• DPSS lasers for use in medical and scientific applications plus range finders
A broad range of standard and custom designed reflectors with varying glaze combinations are available.
Production capabilities
Components up to 250mm long and 80mm wide/diameter manufactured as standard
Partly or totally glazed
One-piece or split-cavity designs
Prototype, batch and volume production
