Diffusion Bonded Crystal

WISOPTIC Capabilities - Diffusion Bonded Crystal
Various options of dopants and doping ratio
Various sizes and cuttings (<100>, <110>, <111>)

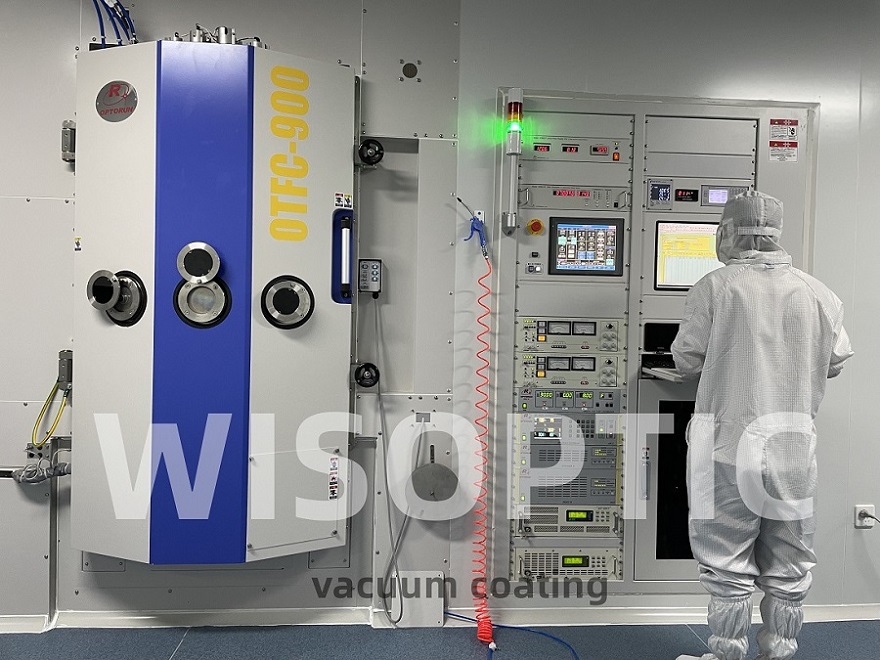

Various options of coatings (AR, HR, HT, PR)
High processing accuracy
Very competitive price, quic
k delivery

Customized design (crystal/endcap size, Nd doping)



  Contact Now
Product Details

Diffusion Bonding Crystal consists of two, three or more parts with different types. They are often used to decrease thermal lens effect, that is conducive to the stability of lasers and high-power laser operation.

The Crystals being bonded could be a laser crystal doped with laser-active ions, and its counterparts without dopants (e.g. YAG + Nd :YAG). The thermal lens effect could substantially decrease by bonding undoped crystal to the ends of the laser gain crystal, because the heat could exit from the two ends rather than just concentrate in laser gain media, thus preventing the potential of thermal fracture and improving the overall stability and beam quality of the laser systems. Bonded parts also could be pardifferent doping compositions (e.g.  Nd :YAG + Cr4+:YAG, where Nd :YAG is the gain media and Cr4+:YAG acts as a saturable absorber for passive Q-switching).


WISOPTIC - Standard Bonded Crystal

Material

Doping Ratio

Aperture

Length

YVO4 + Nd:YVO4 + YVO4

Nd%=0.1%~3.0 atm%

Ø2~15 mm2

0.5~30 mm

YAG + Nd:YAG + YAG

Nd%=0.1%~1.3 atm%

Ø2~15 mm2

0.5~200 mm

YAG + Nd:YAG + Cr4+:YAG

Nd%=0.1%~1.3 atm%
Cr4+%=0.5%~3.0 atm%

Ø2~15 mm2

0.5~200 mm

Nd:YAG + Cr4+:YAG

Nd%=0.1%~1.3 atm%
Cr4+%=0.5%~3.0 atm%

Ø2~15 mm2

0.5~200 mm



Nd:YAG Doping0.4-1.1%
Intrinsic Loss0.1% cm-1
Scattering Sitesinvisible, probed with a He-Ne laser
Diameter Tolerance+0/-0.02mm
Length Tolerance+0.5/-0mm
Surface Quality10/5
Clear Aperture>95%
Surface Flatness<λ/10@632.8nm
Wavefront Distortion<λ/10@632.8nm per inch
Parallelism<10 arc seconds
Perpendicularity<5 arc minutes
Chamfer0.1mm@45°
Barrel Finishground finish with 400# Grit



Diffusion Bonded Crystal.jpg


Diffusion Bonded Crystal.jpg


Diffusion Bonded Crystal.jpg
