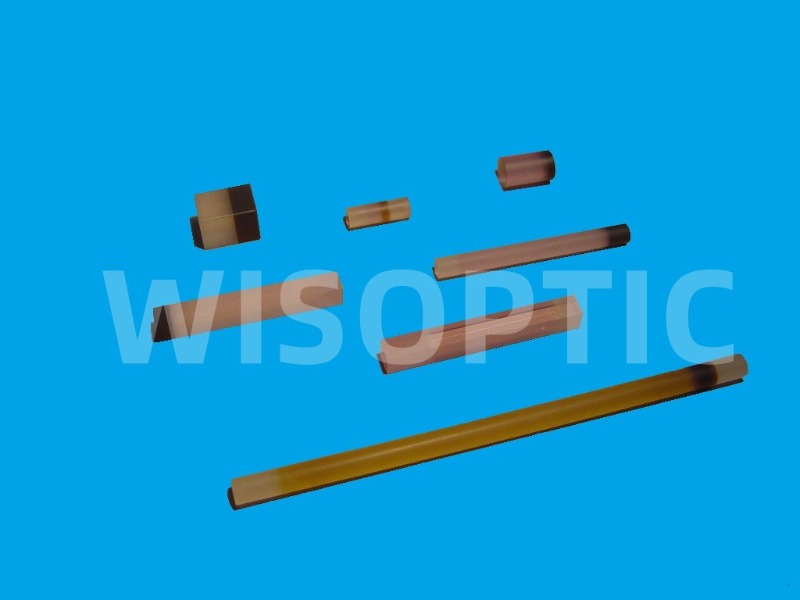

Diffusion Bonded Crystal

Various options of dopants and doping ratio
Various sizes and cuttings (<100>, <110>, <111>)
Various options of coatings (AR, HR, HT, PR)
High processing accuracy
Very competitive price, quick delivery


  Contact Now
Product Details

Diffusion bonded crystal consists of two, three or more parts of crystals with different dopants or same dopant with different doping levels. This material is commonly made by bonding one laser crystal with one or two undoped crystals by precise optical contact and further processing under high temperature. This innovative design substantially reduces thermal lens effect of the laser crystals, thus make it possible fora compact laser to have enough power.

Diffusion Bonded Crystal


WISOPTIC - Standard* Bonded Crystal


Material

Doping Ratio

Aperture

Length

YVO4 + Nd:YVO4 + YVO4

Nd%=0.1%~3.0 atm%

Ø2~15 mm2

0.5~30 mm

YAG + Nd:YAG + YAG

Nd%=0.1%~1.3 atm%

Ø2~15 mm2

0.5~200 mm

YAG + Nd:YAG + Cr4+:YAG

Nd%=0.1%~1.3 atm%
Cr4+%=0.5%~3.0 atm%

Ø2~15 mm2

0.5~200 mm

Nd:YAG + Cr4+:YAG

Nd%=0.1%~1.3 atm%
Cr4+%=0.5%~3.0 atm%

Ø2~15 mm2

0.5~200 mm

*Custom design upon request
