Polarizating Beamsplitter (PBS)

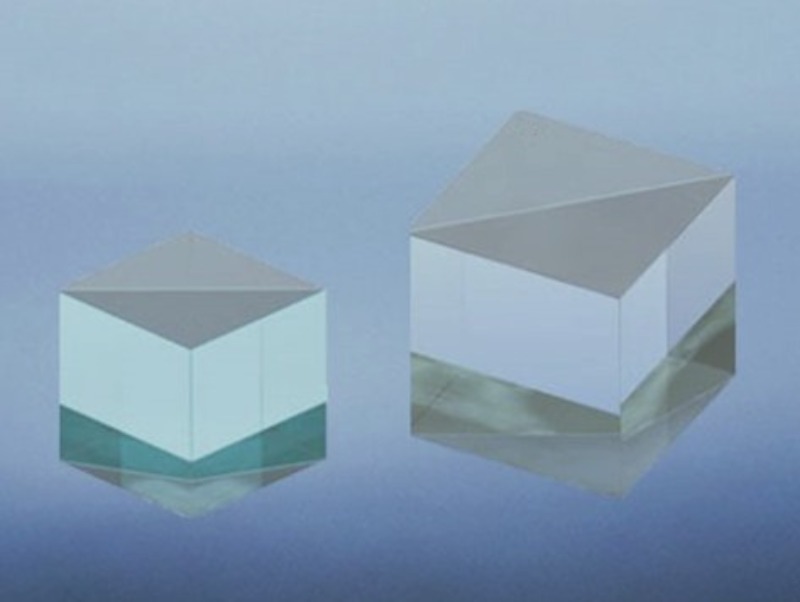

Polarizing Beamsplitters (PBS) splits incident unpolarized light into two perpendicular linearly polarized light. Among them, p-polarized light passes through completely, while s-polarized light is reflected at 45 deg which makes the emitting direction of s-light vertical to p-light. The PBS is composed of a pair of high-precision right-angle prisms cemented together, one of which is coated on the wedged surface which determines the beam splitting ratio. All the incident surfaces and emitting surfaces are AR coated.


  Contact Now
Product Details

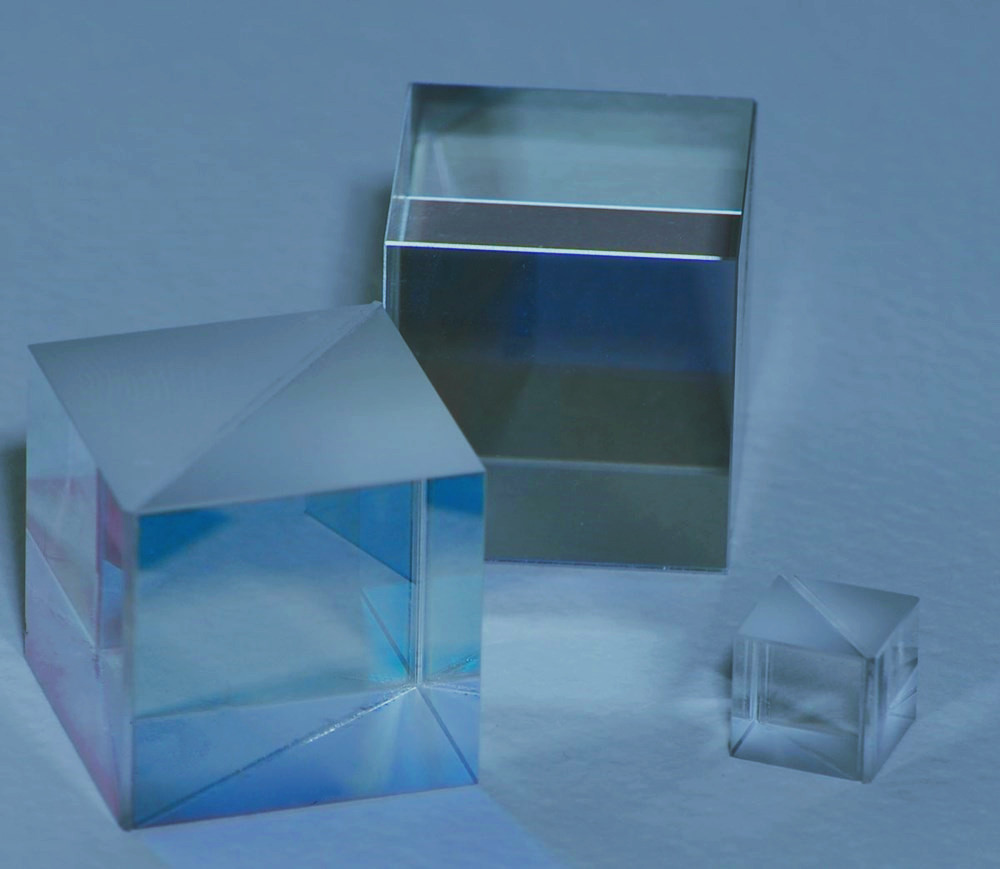

WISOPTIC offers both plate and cube PBS for a variety of wavelength ranges and power handling requirements. In addition, birefringent crystals, Brewster windows, and waveplates are also offered for higher-laser damage threshold requirements.


 Polarizating Beamsplitter (PBS)


WISOPTIC Specifications - PBS*


Material

N-BK7(H-K9L), H-ZF3, fused quartz

Diameters / Tolerance

0.5×0.5×0.5mm~50×50×50mm / ±0.2 mm

Extinction Ratio

Single band: >1000:1
Broad band: >300:1

Clear Aperture

> 90% of central area

Surface Quality

< 40/20 [S/D]

Flatness

< λ/10 @ 632.8 nm

Parallelism

≤ 10”

Transmitted Light Deviation

<±3 arcmin

Reflected Light Deviation

90°±3 arcmin

Transmission Ratio

Tp>95%,Ts<1%

Reflection Ratio

Rs>99.5%,Rp<5%

Chamfer

Protective chamfer @ 45°

  Coating Wavelength (nm)

  Single band: 488, 532, 632.8, 650, 808, 850, 980, 1064, 1310, 1550
Broad band: 450-650, 650-900, 900-1200, 1200-1550, 1500-1610

  Laser Damage Threshold

15 J/cm² @ 1064 nm, 20 ns, 20 Hz

* Customization is available.
