Concave Spherical Lenses

Various of shapes: spherical, achromatic, aspheric, Powell, and cylindrical lenses

Enough choice of substrates: N-BK7, N-SF6, UV fused silica, calcium fluoride, magnesium fluoride, zinc selenide, germanium, and silicon.

Precisely processing and coating

Very competitive price and lead time


  Contact Now
Product Details

Optical lenses can be made in many shapes and may be comprised of a single element or form constituent parts of a multi-element compound lens system. They are used to focus light and images, produce magnification, correct optical aberrations and for projection, mainly controlling the focus or divergence light used in instrumentation, microscopy and laser applications. Any specification of convex or concave lens can be produced according to required transmission and material, to a specific focal length.

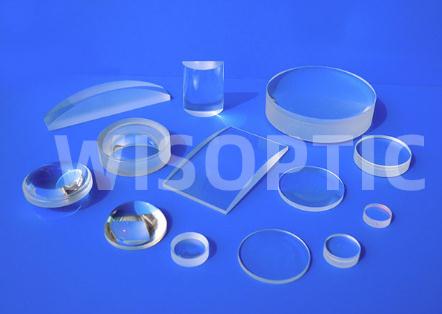

WISOPTIC supplies Optical Lenses made from materials including Fused Quartz, Fused Silica, Optical glasses, UV and IR crystals and plastic optically moulded. Our lenses cover a range of commercial grade to precision quality across UV to IR spectrums, and are used in a variety of applications in the science, medical, imaging, defence and industrial sectors. All our Optical Lenses can be supplied from a stock standard range or custom made to order. We are able to supply custom optical lenses to your specific design, size and specifications.

Applications:

  • Magnification

  • Correction of optical aberrations

  • Use as a firestarter (burning-glasses)

  • Image focusing

  • Image projection


Concave Spherical Lenses



Medium Precision

High Precision

Aperture

5~200 mm

20~1000 mm

Surface Quality [S/D]

< 40/20 [S/D]

< 40/20 [S/D]

Surface Irregularity

PV< 0.5~5 µm

RMS< λ/50 @ 632.8 nm

Aspheric Surface Type

  Quadric, High order

Quadric, High order

Manufacture Capability

300 pcs/month

20 pcs/year


Concave Spherical Lenses


Concave Spherical Lenses
