KD*P E-O Q-Switch

  • Voltage contrast ratios up to 15000:1

  • Lowest loss Pockels cells with 99% grade KD*P developed in-house

  • Long and proven lifetime, 2 years guarantee

  • 20 year experience servicing the most demanding laser applications with KD*P and KDP including large aperture Pockels cell (dia>20 mm) for high power laser system (e.g. ICF)

  • KDP, KD*P, KTP, RTP, BBO, and LN are grown by WISOPTIC in-house

  • Being purchased and trusted by dozens of laser companies worldwide

  Contact Now
Product Details

E-O Q-switch based on DKDP (KD*P) crystals are one of the most popular Pockels cells in the market.

Deuterated potassium dihydrogen phosphate has good transmission from 390 nm to 1400 nm (0.39 μm – 1.4 μm) and combined with high electro-optical coefficients makes it suitable for Pockels cells.

Highly deuterated DKDP (D>99% – WISOPTIC) is necessary to reach effective electro-optical response. High laser induced damage threshold is guaranteed by applying special anti-reflective coatings on this hygroscopic crystal.

WISOPTIC standard DKDP Pockels cells are with longitudinal Electrooptic Modulation configuration.


Clear Aperture

8 mm

10 mm

12 mm

13 mm

Single Pass Insertion Loss

< 2% @1064 nm

Intrinsic Contrast Ratio

> 5000:1 @1064 nm

Voltage Contrast Ratio

> 2000:1 @1064 nm

Wavefront Distortion

< l/6@ 633 nm

DC Capacitance

< 4.5 pF

< 5.0 pF

< 5.5 pF

< 8.0 pF

DC Quarter Wave Voltage

3200 +/- 200 V @1064 nm

Single Pass Transmission

> 98.5%

Laser Damage Thereshold

750 MW/cm2 [AR coating@1064nm,10ns,10Hz]

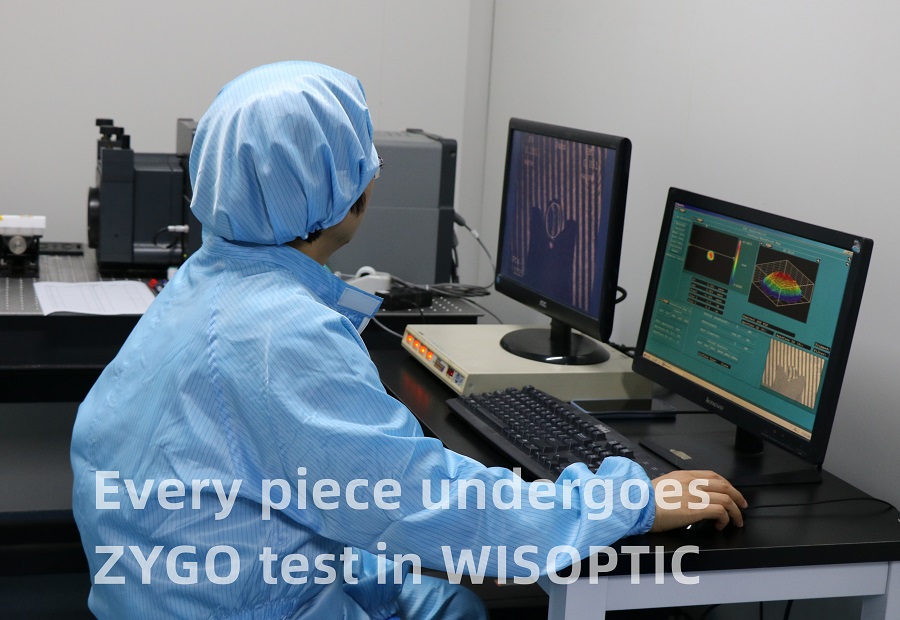

KD*P E-O Q-Switch.jpg

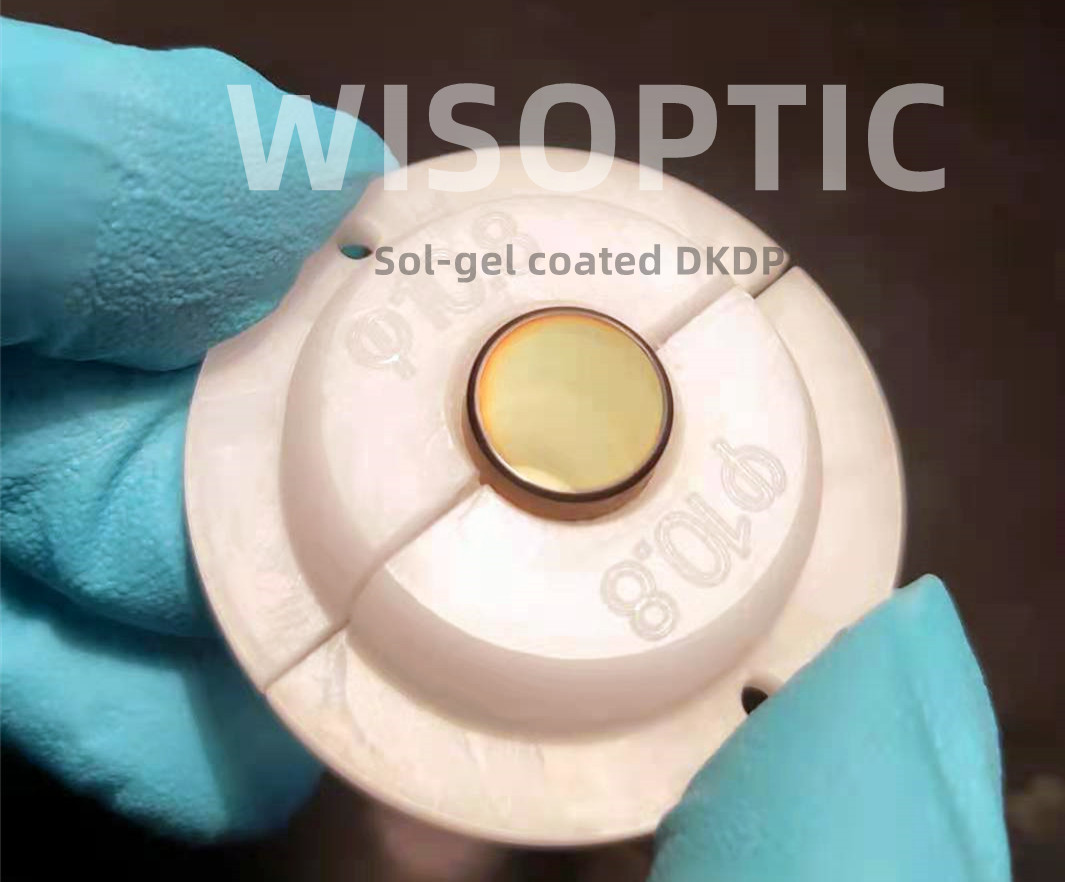

KD*P E-O Q-Switch.jpg

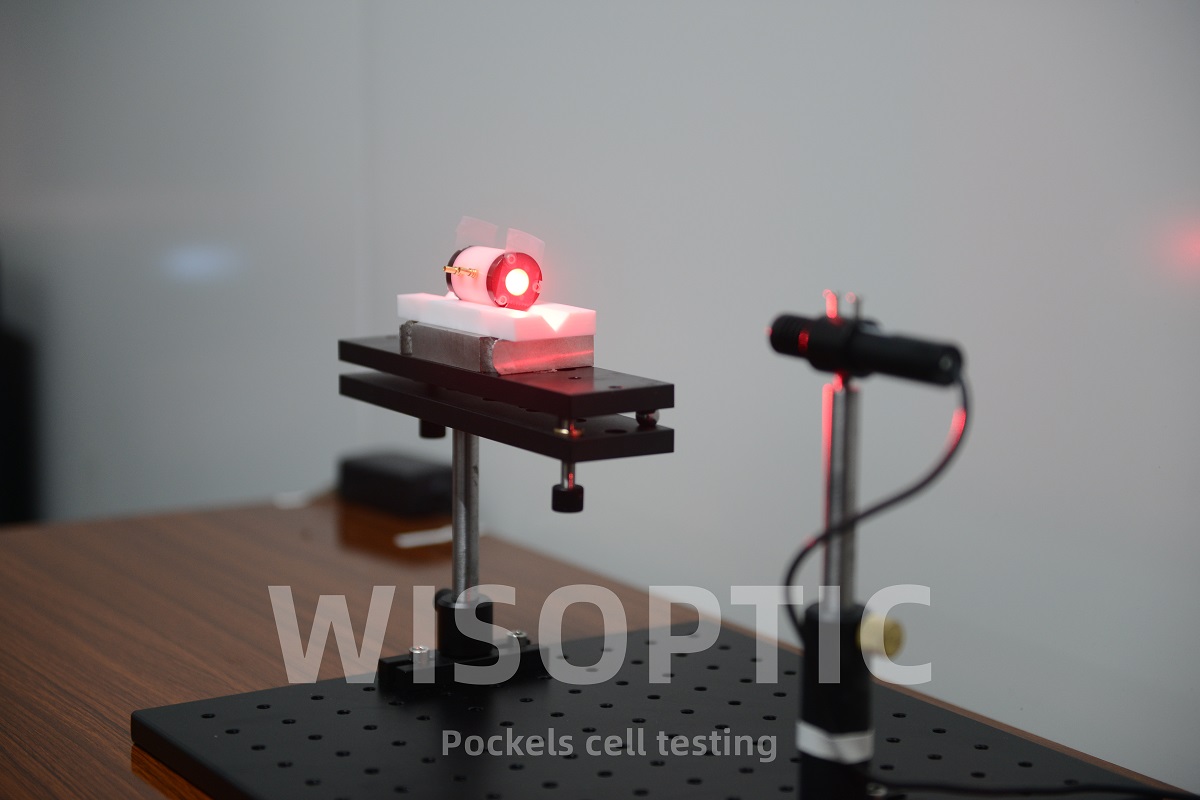

KD*P E-O Q-Switch.jpg

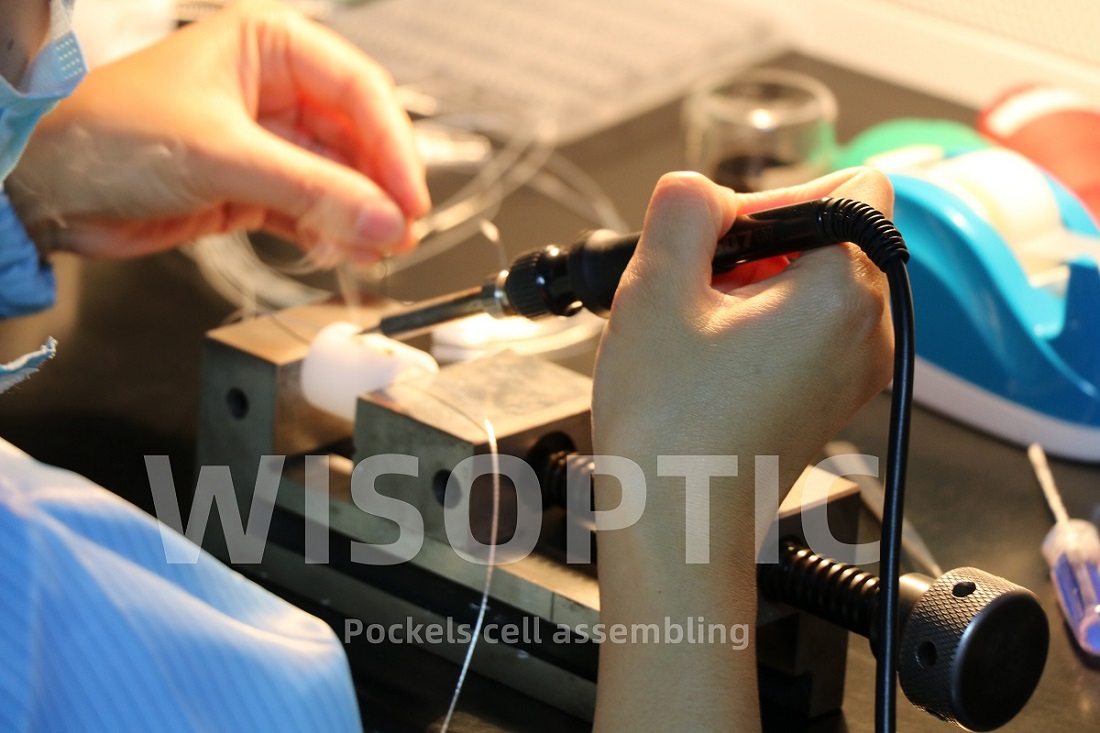

KD*P E-O Q-Switch.jpg
