KDP with High Transmission (T>90%)at 266nm

High homogeneity and optical uniformity
Excellent internal quality

Top finish quality with high processing precision
Large block for various size and shapes
Very competitive price
Mass production, quick delivery

Over 20 years experience of crystal growing technique


  Contact Now
Product Details

Potassium dihydrogen phosphate KH2PO4 (KDP) is a transparent dielectric material best known for its nonlinear optical and electro-optical properties. Because of its nonlinear optical properties, it has been incorporated into various laser systems for harmonic generation and optoelectrical switching. In addition, KDP is particularly suitable for use in large-aperture laser systems such as that located at the National Ignition Facility (NIF) because it can be grown as a single crystal to large size.


WISOPTIC' KDP/KD*P WITH BEST COST PERFORMANCE IN THE WORLD

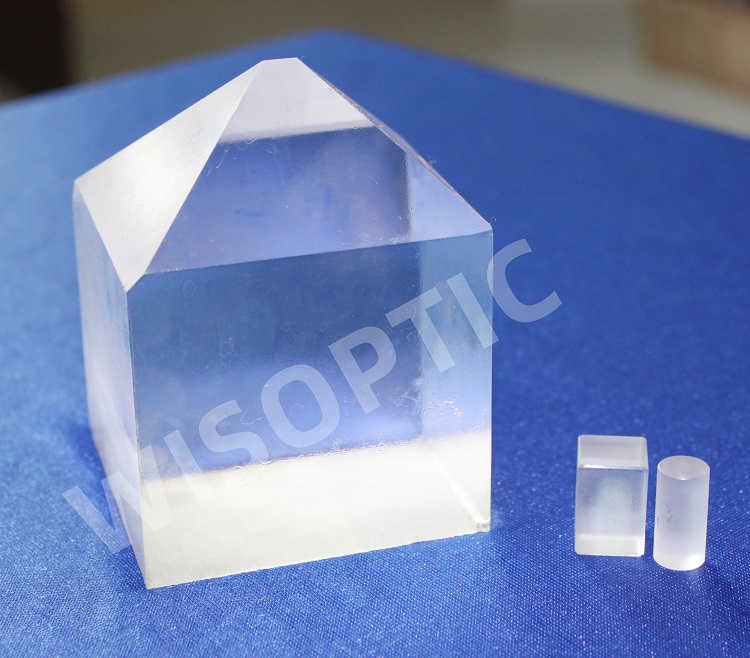

KDP with high transmission (T>90%)at 266nm.jpg


Dimensions

On customer's request (100*100*80mm)

Dimension Tolerance

± 0.1 mm

Angle Tolerance

≤ ± 0.25°

Flatness

< λ/8 @ 632.8 nm

Surface Quality

< 20/10 [S/D] (MIL-PRF-13830B)

Parallelism

< 20”

Perpendicularity

≤ 5'

Chamfer

≤ 0.2mm @ 45°

Transmitted Wavefront Distortion

< λ/8 @ 632.8 nm

Clear Aperture

> 90% of central area

Laser Damage Threshold

> 500 MW for 1064nm, TEM00, 10ns, 10Hz (AR-coated)
> 300 MW for 532nm, TEM00, 10ns, 10Hz (AR-coated)

* Products with special requirement upon request.
