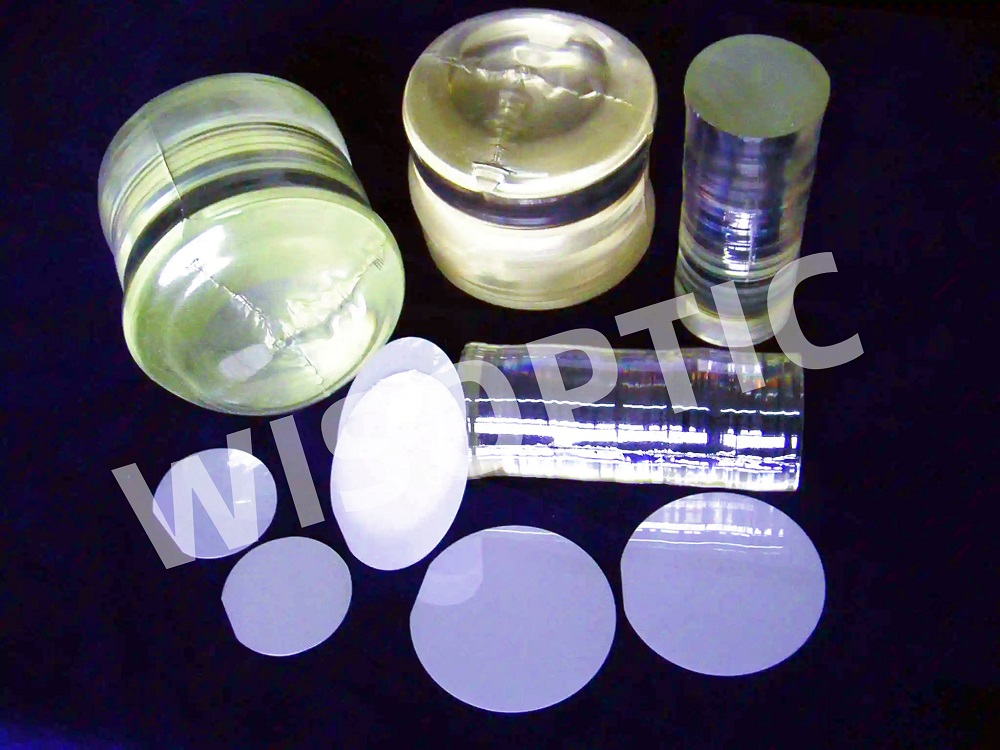

In-house Grown Bulk of LiNbO3 Crystal

Various sizes of finished components for different applications

Aperture of (2-15) x (2- 5) mm2 and length up to 50 mm for frequency doublers and OPO; 50x50x1 mm3 or Dia. 3" x 1 mm substrate for waveguide optics; Dia. 3" SAW wafers

Strict quality control
Reliable and fast delivery
Very competitive p
rice
Free technical support always with quick response


  Contact Now
Product Details

Lithium  Niobate (LN) crystal has excellent electro-optic, acousto-optic,  piezoelectric and nonlinear properties. More and more attention has been paid on its application in military technology. LN crystal has large nonlinear optical coefficient and can easily achieve non-critical phase matching. As an E-O material, LN crystal has been used as an important optical waveguide material. As a piezoelectric crystal, it can be used in low-frequency SAW filter, high-power high-temperature ultrasonic transducer and so on.

Applications of LN Crystal

Integrated Wave Guide Photonics

Wave Guide Lasers

Polarizer for Optic Isolator

EO Waveguide Phase Modulators

EO Waveguide Amplitude Modulators

Quasi-phase Matching for SHG and OPO



In-house Grown Bulk of LiNbO3 Crystal .jpg


Typical Specifications of LiNbO3 Crystal Made in WISOPTIC


Dimension Tolerance

± 0.1 mm

Angle Tolerance

± 0.5°

Flatness

< λ/8 @ 632.8 nm

Surface Quality

< 20/10 [S/D]

Parallelism

< 20”

Perpendicularity

≤ 5'

Chamfer

≤ 0.2mm @ 45°

Transmitted Wavefront Distortion

< λ/4 @ 632.8 nm

Clear Aperture

> 90% central area

Coating

AR coating: R < 0.2% @ 1064 nm, R < 0.5% @ 532 nm

* Products with special requirement upon request.



In-house Grown Bulk of LiNbO3 Crystal .jpg

In-house Grown Bulk of LiNbO3 Crystal .jpg


In-house Grown Bulk of LiNbO3 Crystal .jpg


In-house Grown Bulk of LiNbO3 Crystal .jpg
