Yb:YAG Crystal

Advantages of Yb:YAG Crystal Made by WISOPTIC

  • Simple electronic structure excludes excited-state absorption and also a variety of detrimental quenching processes

  • Broad absorption band at 940 nm

  • Long lifetime of the 2F5/2 ytterbium energy level

  • Low quantum defect

  • Custom crystals available upon request


  Contact Now
Product Details

Yb:YAG (Ytterbium-doped Yttrium Aluminum Garnet) is one of the most promising laser-active materials with a large absorption bandwidth and typical emission at 1030 nm. Yb:YAG is more suitable for high power diode-pumped lasers than the traditional Nd-doped systems. The broad absorption band enables Yb:YAG to maintain uninterrupted pump efficiency across the typical thermal shift of diode output. High efficiency means a relatively small dimension Yb:YAG laser crystal will produce high power output.

Wisoptic offer excellent quality Yb:YAG crystals with dopant concentrations ranging from 0.2-30% Yb in various dimensions and orientations in both coated and uncoated forms, in both rods and discs shapes, that meet your exact specifications.

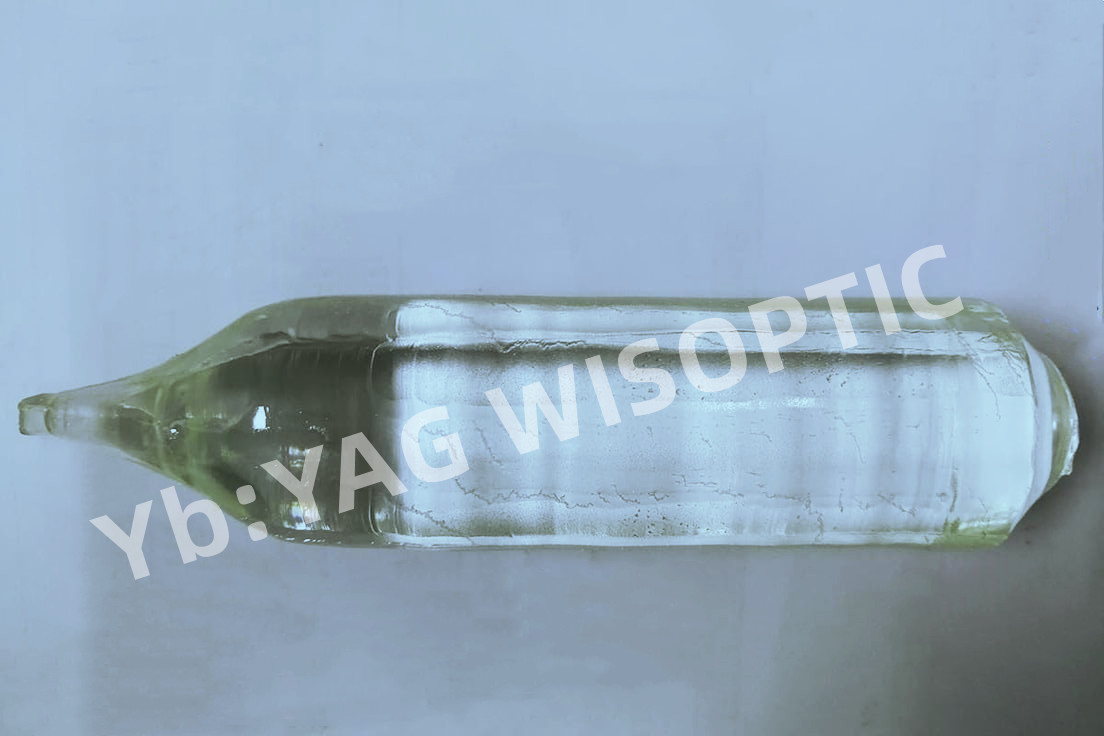

Yb:YAG Crystal.jpg

Application examples

  • Material processing, micromachining, welding, cutting

  • Efficient high power thin-disk lasers


Material and Specifications

Dopant concentration: Yb: 0.5~25 at %
Orientation: [100] or [111] within 5°
Wavefront distortion: 0.125 l/inch
Extinction ratio: 28 dB
Rod sizes: diameter: 2~20 mm; length: 5~150 mm (upon request of customer)
Dimensional tolerances diameter: +0.00“/– 0.002“ mm
length: ±0.02"
Barrel finish ground finish: 400# grit
Parallelism: ≤10"
Perpendicularity: 5'

Flatness: lambda/10
Surface quality: 10 5 (MIL-O-13830A)
Chamfer: 0.006" ± 0.002" at 45°±
AR coating reflectivity: 0.25 % (@1030 nm)
Single pass loss: < 3×103 cm-1


Yb:YAG Crystal.jpg


Yb:YAG Crystal.jpg


Yb:YAG Crystal.jpg
