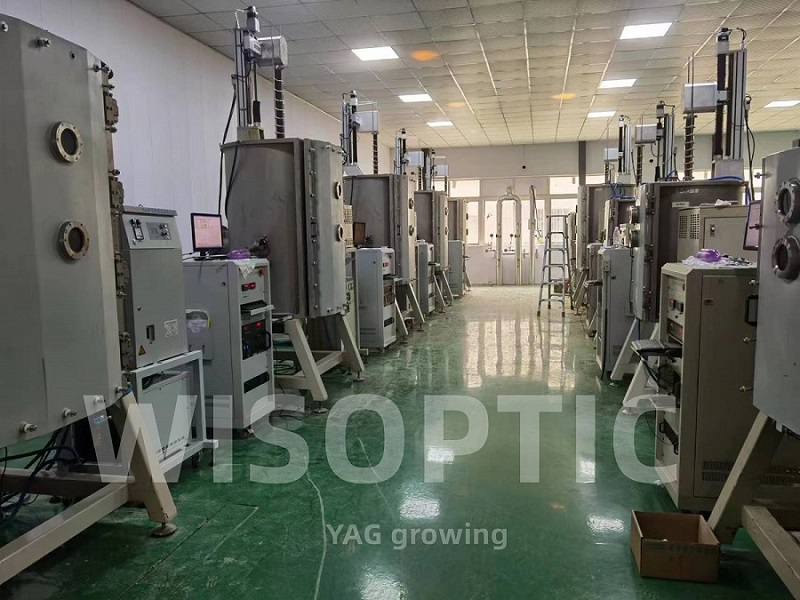

Nd Doped YAG Rod or Slab with Nd%=0.1~1.3%
WISOPTIC Capabilities - Nd:YAG
• Various options of Nd-doping ratio (0.1%~1.3at%)
• Various options of rods or slabs (flat, wedged, Brewster, grooved, etc)
• High optical homogeneity

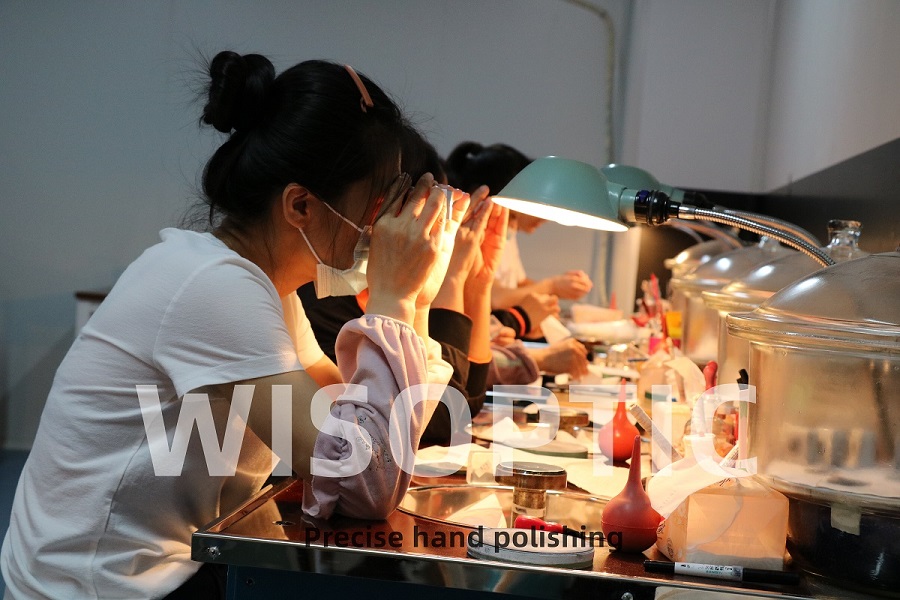

• High processing accuracy
• High quality coating, high damage threshold
• Very competitive price, quick delivery
Nd:YAG (Neodymium Doped Yttrium Aluminum Garnet, Nd:Y3Al5O12) has been and continues to be the most mature and most widely used crystals for lasers, no matter solid state or lamp pumped, CW or pulsed. It possesses a combination of properties uniquely favorable for laser operations. Nd:YAG
crystals are used in all types of solid-state lasers
systems-frequency-doubled continuous wave, high-energy Q-switched, and
so on.
Nd:YAG Crystal' Advantages
1) High gain, Low threshold, High efficiency
2) High optical quality, Low loss
3) Large mechanical strength,Good thermal conductivity and thermal shock characteristics
4) Suitable for different modes of operation (cw, pulsed, Q-switched, mode locked, doubling of frequency)
5) Suitable for high-average power
lasers
WISOPTIC provides Nd:YAG rods with the following features: different doping levels, high optical homogeneity, high processing accuracy, precise barrel grooving and wedge angle, various end cuts, various dielectric coatings, high damage threshold.
WISOPTIC Standard Specifications* - Nd:YAG
Standard Doping Ratio | Nd%=0.1%~1.3at% |
Orientation | <111> or <100> or <110> |
Orientation Tolerance | +/-0.5° |
Dimensions | Diameter: 2~15 mm, Length: 3~220 mm |
Dimension Tolerance | Diameter (±0.05)×Length (±0.5) mm |
Barrel Finish | Ground with 400# grit, or polished |
Flatness | < λ/10 @ 632.8 nm |
Surface Quality | < 10/5 [S/D] |
Parallelism | < 10” |
Perpendicularity | ≤ 5' |
Chamfer | 0.15 ± 0.025mm @ 45° |
TransmittedWavefront Distortion | < λ/10 @ 632.8 nm |
Clear Aperture | > 90% central area |
Extinction Ratio | > 30 dB |
Coating | AR-Coating: R<0.10% @1064nm |
Laser Damage Threshold | > 800 MW/cm2 for 1064nm, 10ns, 10Hz (AR-coated) |
* Products with special requirement upon request. |
