a-Cut or c-Cut Precisely Nd Doped YVO4

WISOPTIC Capabilities - Nd:YVO4
Various options of Nd-doping ratio (0.1%~3.0at%)
Various sizes (max diameter: 16×16 mm; max length: 20 mm)
Various coatings (AR, HR, HT)
High processing accuracy
Very competitive price, quick delivery


  Contact Now
Product Details

Nd:YVO4 is the most efficient laser crystal for diode-pumped solid-state lasers. The good physical, optical and mechanical properties make Nd:YVO4 an excellent material for high power, stable and cost-effective diode-pumped solid-state lasers.

Compare with Nd:YAG for diode laser pumping, Nd:YVO4 lasers have the following advantages:

  • Lower lasing threshold and higher slope efficiency

  • Large stimulated emission cross-section at lasing wavelength

  • High absorption over a wide pumping wavelength bandwidth

  • Low dependency on pumping wavelength and tend to single mode output

  • Optically uniaxial and large birefringence emit strongly-polarized laser

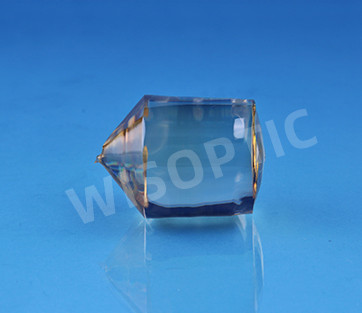

Wisoptic provide high quality and large size Nd:YVO4 and pure YVO4 crystal as large as 35x35x50mm3 bulk crystal and18 x18x20mm3 finished crystal by very competitive price.


a-Cut or c-Cut Precisely Nd Doped YVO4.jpg

WISOPTIC Standard Specifications* - Nd:YVO4

Doping Ratio

Nd%=0.2%~3.0at%

Orientation Tolerance

+/- 0.5°

Aperture

1×1 mm2~16×16 mm2

Length

0.02 mm~20 mm

Dimension Tolerance

(W±0.1mm)×(H±0.1mm)×(L+0.5/-0.1mm) (L≥2.5mm)
(W±0.1mm)×(H±0.1mm)×(L+0.2/-0.1mm) (L<2.5mm)

Flatness

< λ/8 @ 632.8 nm (L≥2.5mm)
< λ/4 @ 632.8 nm (L<2.5mm)

Surface Quality

< 20/10 [S/D]

Parallelism

< 20”

Perpendicularity

≤ 5'

Chamfer

≤ 0.2 mm @ 45°

Transmitted Wavefront Distortion

< λ/4 @ 632.8 nm

Clear Aperture

> 90% central area

Coating

AR @ 1064nm, R< 0.1% & HT @ 808nm, T>95%;
HR @ 1064nm, R>99.8% & HT@ 808nm, T>95%;
HR @ 1064nm, R>99.8%, HR @ 532 nm, R>99% & HT @ 808 nm, T>95%

Laser Damage Threshold

> 700 MW/cm2 for 1064nm, 10ns, 10Hz (AR-coated)

* Products with special requirement upon request.

a-Cut or c-Cut Precisely Nd Doped YVO4.jpg


a-Cut or c-Cut Precisely Nd Doped YVO4.jpg


a-Cut or c-Cut Precisely Nd Doped YVO4.jpg


a-Cut or c-Cut Precisely Nd Doped YVO4.jpg
